KR35-PP Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 35 mm; Roller Width: 18 mm; Stud Dia: 16 mm; Stud Length: ;

KR35-PP
REQUEST FOR QUOTE
* *
Send
Product Attributes
Guide Roller Type Track
Track Roller Type Round
For Load Direction Radial
Roller Profile Flat
Roller Style Threaded Stud
Roller Material Steel

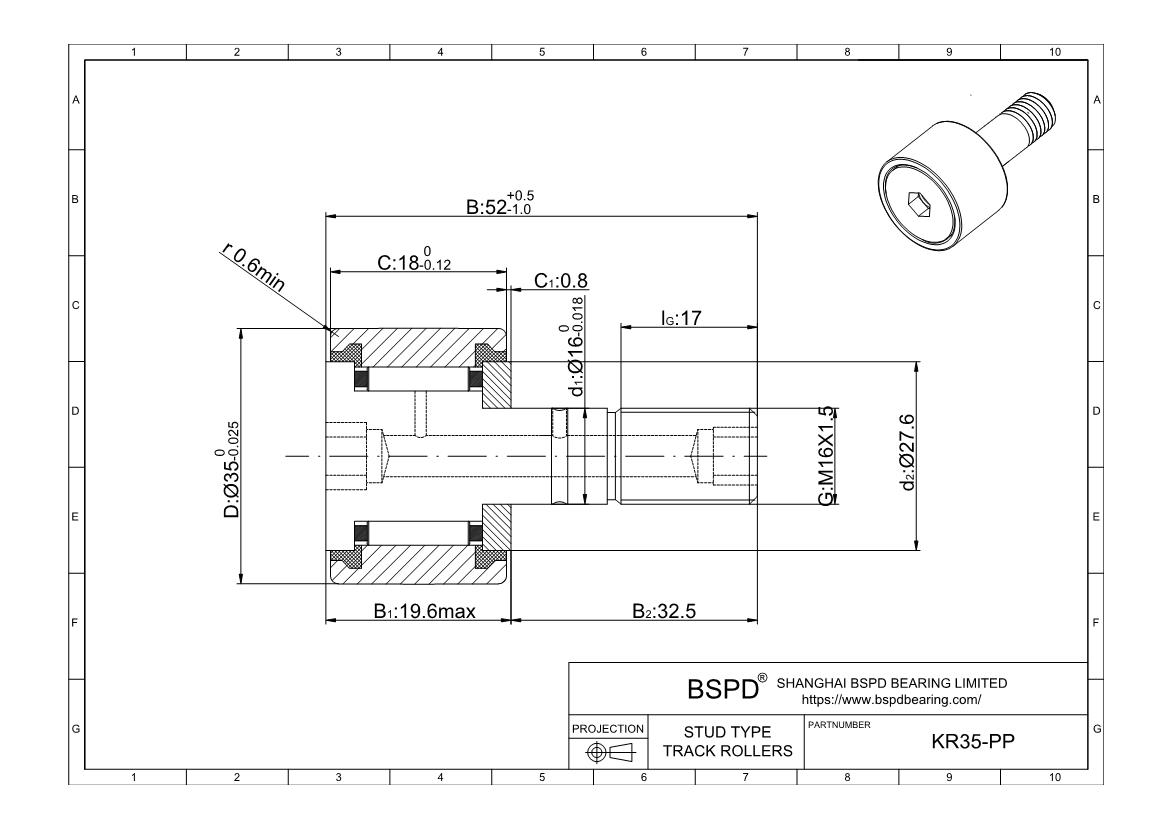

D 35 mm
d1 16 mm
B 52 mm
C 18 mm
C1 0,8 mm
d2 27,6 mm
G M16x1,5
IG 17 mm
rmin 0.6 mm
Cr w 9700 N
Cur w 1830 N
Maximum Speed 3600 1/min
Temperature Range -20 to 110 °C
Shaft Mount Type Press Fit
Bearing Type Needle Roller
With Seal Yes
Lubrication Required
RoHS Compliant
Weight (g) 164
KR35-PP
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
