KRE52-PP Cam Followers, Yoke Type & Stud Type Track Rollers

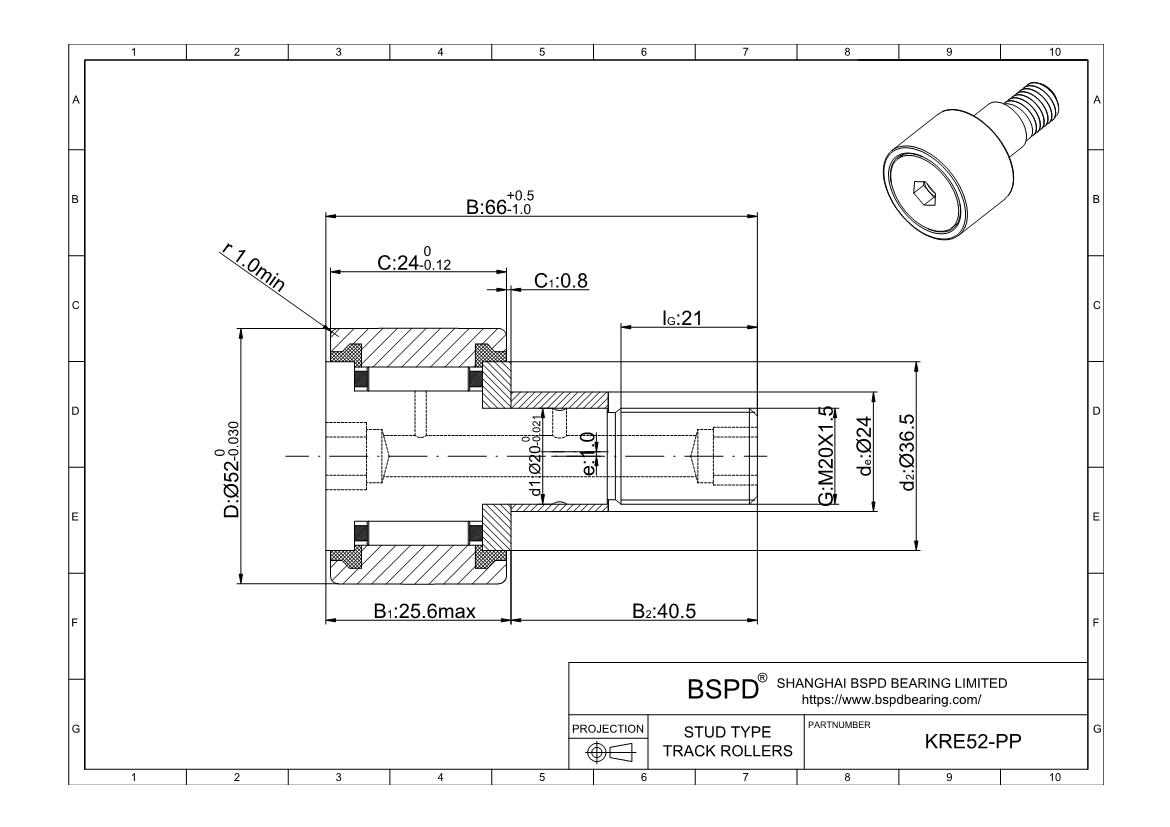

Dimensions: Roller Dia: 52 mm; Roller Width: 24 mm; Stud Dia: 20 mm; Stud Length: 40.5 mm;

KRE52-PP
REQUEST FOR QUOTE
* *
Send
Product Attributes
Guide Roller Type Track
Track Roller Type Round
For Load Direction Radial
Roller Profile Flat
Roller Style Threaded Stud
Roller Material Steel
D 52 mm
de 24 mm
B 66 mm
B1 max 25,6 mm
B2 40.5 mm
C 24 mm
C1 0.8 mm
d1 20 mm
d2 36,5 mm
e 1 mm
G M20x1,5
IG 21 mm
rmin 1 mm
Cr w 16600 N
Cur w 3800 N
Maximum Speed 2400 1/min
Temperature Range -20 to 110 °C
Shaft Mount Type Press Fit
Bearing Type Needle Roller
With Seal Yes
Lubrication Required
RoHS Compliant
Weight (g) 473
KRE52-PP
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings KRE52-PP ? Cam Followers, Yoke Type & Stud Type Track Rollers Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
