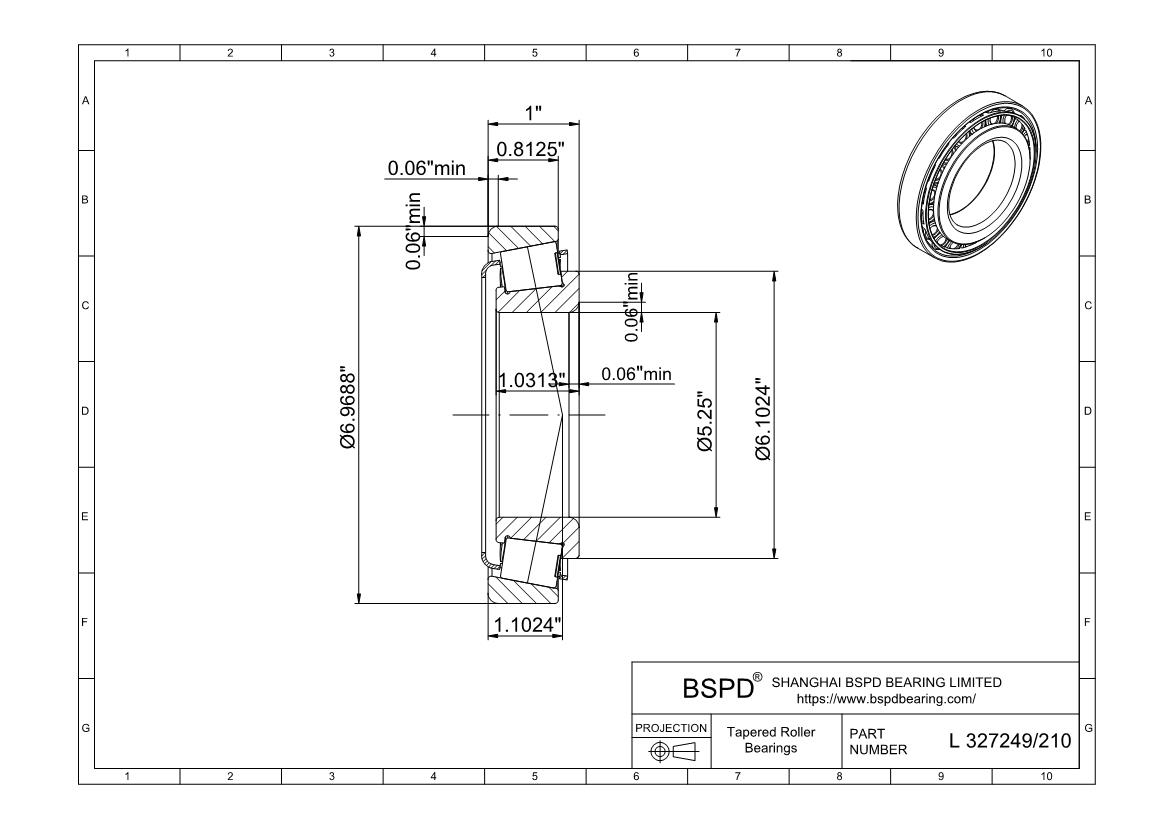

L 327249/210 Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 5.2500 "; Outer Diameter: 6.9688 "; Width (Thickness): 1.0000 ";

L 327249/210
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberL 327249/210
Bore diameter5.2500 "
Outside diameter6.9688 "
Total width1.0000 "
Shoulder diameter of inner ring6.1024 "
Widthof inner ring1.0313 "
Width of outer ring0.8125 "
Chamfer minimum dimension of inner ring (r1,2)1.5 mm
Chamfer minimum dimension of outer ring (r3,4)1.5
Distance side face to pressure point (a)28
Basic dynamic load rating (Cr)166
Basic static load rating (Cor)280
Fatigue load limit (Pu)28
Reference speed2600 r/min
Limiting speed3200 r/min
Mass1.7 kg
Limiting value (e)0.35
Axial load factor (Y)1.7
Axial load factor (Y0)0.9
Maximum diameter of shaft abutment (da)145 mm
Minimum diameter of shaft abutment (db)144 mm
Minimum diameter of housing abutment (Da)165 mm
Maximum diameter of housing abutment (Da)167 mm
Minimum diameter of housing abutment (Db)170 mm
Minimum width of space required in housing on large side face (C5 mm
Minimum width of space required in housing on small side face (C4.5 mm
Maximum Radius of shaft fillet (ra)1.5 mm
Maximum Radius of housing fillet (rb)1.5 mm
