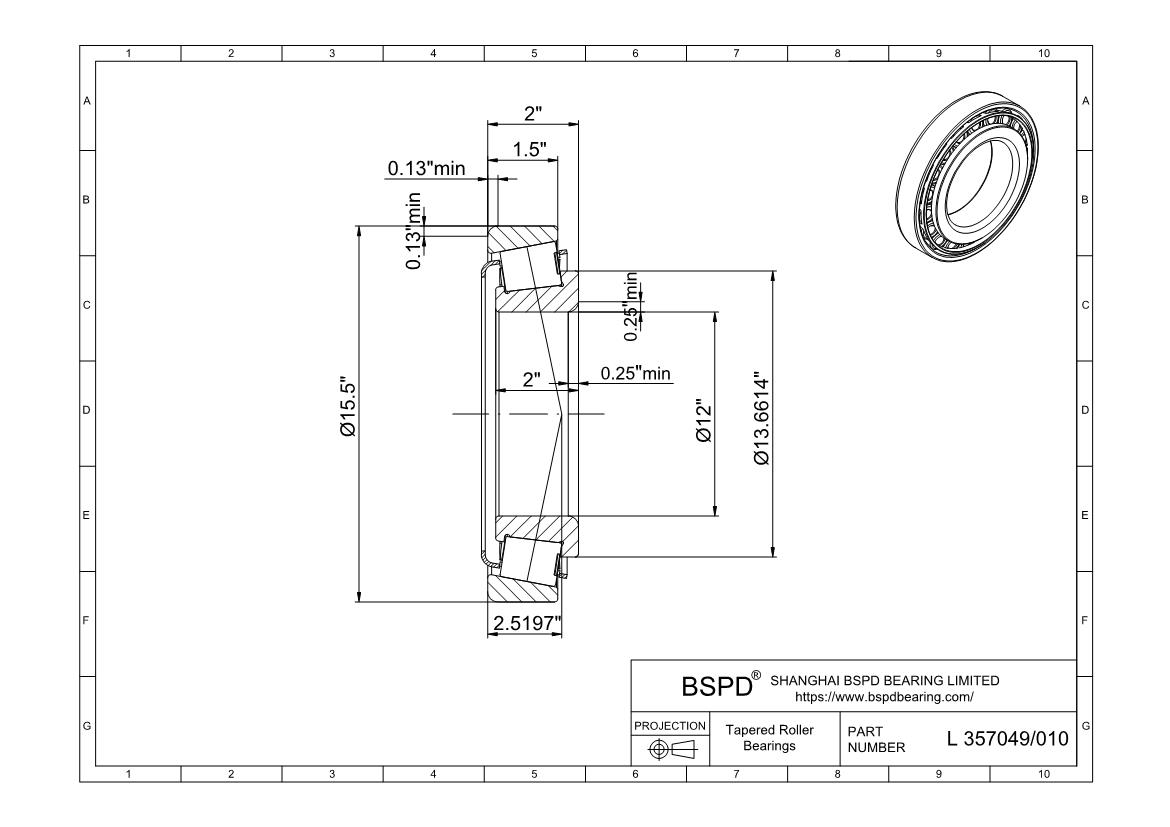

L 357049/010
Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 12.0000 "； Outer Diameter: 15.5000 "； Width (Thickness): 2.0000 ";
REQUEST FOR QUOTE
Product Attributes
| Product Number | L 357049/010 |
| Bore diameter | 12.0000 " |
| Outside diameter | 15.5000 " |
| Total width | 2.0000 " |
| Shoulder diameter of inner ring | 13.6614 " |
| Widthof inner ring | 2.0000 " |
| Width of outer ring | 1.5000 " |
| Chamfer minimum dimension of inner ring (r1,2) | 6.4 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 3.3 |
| Distance side face to pressure point (a) | 64 |
| Basic dynamic load rating (Cr) | 655 |
| Basic static load rating (Cor) | 1220 |
| Fatigue load limit (Pu) | 104 |
| Reference speed | 1100 r/min |
| Limiting speed | 1400 r/min |
| Mass | 15 kg |
| Limiting value (e) | 0.35 |
| Axial load factor (Y) | 1.7 |
| Axial load factor (Y0) | 0.9 |
| Maximum diameter of shaft abutment (da) | 327 mm |
| Minimum diameter of shaft abutment (db) | 329 mm |
| Minimum diameter of housing abutment (Da) | 368 mm |
| Maximum diameter of housing abutment (Da) | 377 mm |
| Minimum diameter of housing abutment (Db) | 379 mm |
| Minimum width of space required in housing on large side face (C | 7 mm |
| Minimum width of space required in housing on small side face (C | 12.5 mm |
| Maximum Radius of shaft fillet (ra) | 6.4 mm |
| Maximum Radius of housing fillet (rb) | 3.3 mm |
