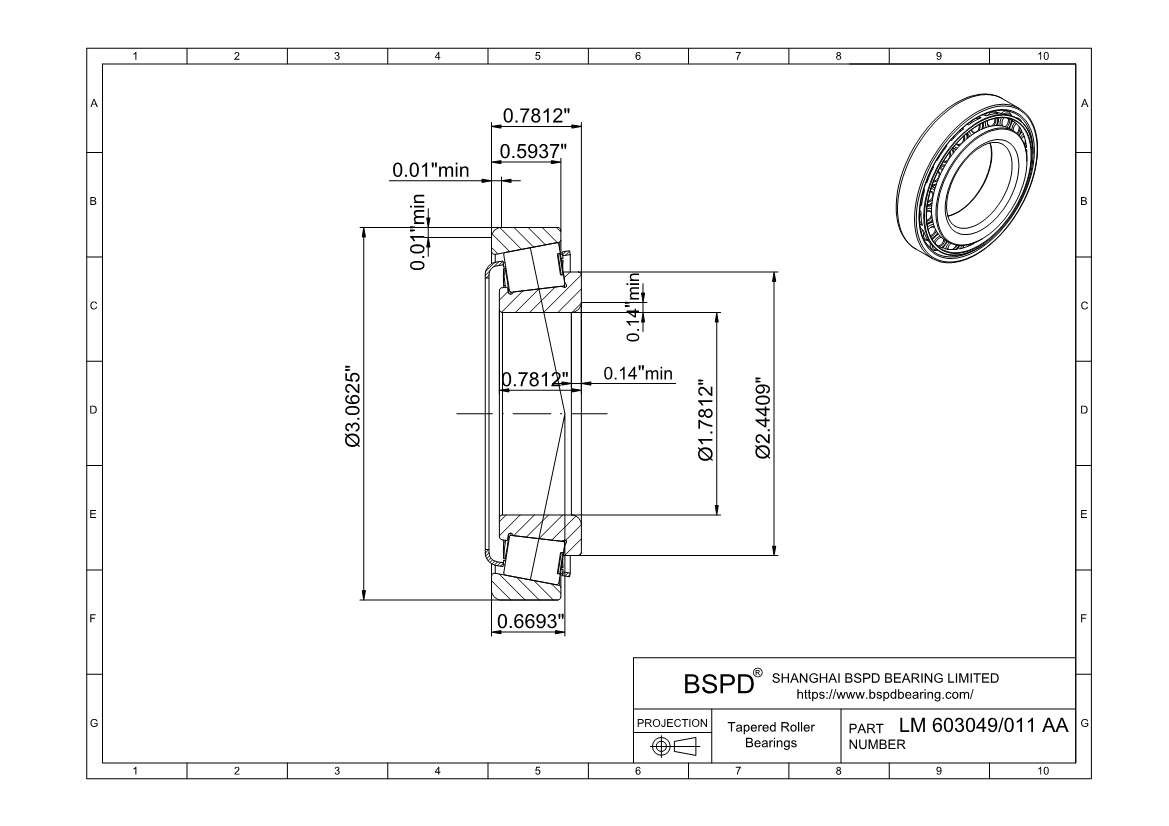

LM 603049/011 AA Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.7812 "; Outer Diameter: 3.0625 "; Width (Thickness): 0.7812 ";

LM 603049/011 AA
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberLM 603049/011 AA
Bore diameter1.7812 "
Outside diameter3.0625 "
Total width0.7812 "
Shoulder diameter of inner ring2.4409 "
Widthof inner ring0.7812 "
Width of outer ring0.5937 "
Chamfer minimum dimension of inner ring (r1,2)3.5 mm
Chamfer minimum dimension of outer ring (r3,4)0.3
Distance side face to pressure point (a)17
Basic dynamic load rating (Cr)66.8
Basic static load rating (Cor)69.5
Fatigue load limit (Pu)7.65
Reference speed7000 r/min
Limiting speed8500 r/min
Mass0.37 kg
Limiting value (e)0.43
Axial load factor (Y)1.4
Axial load factor (Y0)0.8
Maximum diameter of shaft abutment (da)52 mm
Minimum diameter of shaft abutment (db)58 mm
Minimum diameter of housing abutment (Da)68 mm
Maximum diameter of housing abutment (Da)72 mm
Minimum diameter of housing abutment (Db)74 mm
Minimum width of space required in housing on large side face (C4 mm
Minimum width of space required in housing on small side face (C4.5 mm
Maximum Radius of shaft fillet (ra)3.5 mm
Maximum Radius of housing fillet (rb)0.3 mm
LM 603049/011 AA
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings LM 603049/011 AA ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
