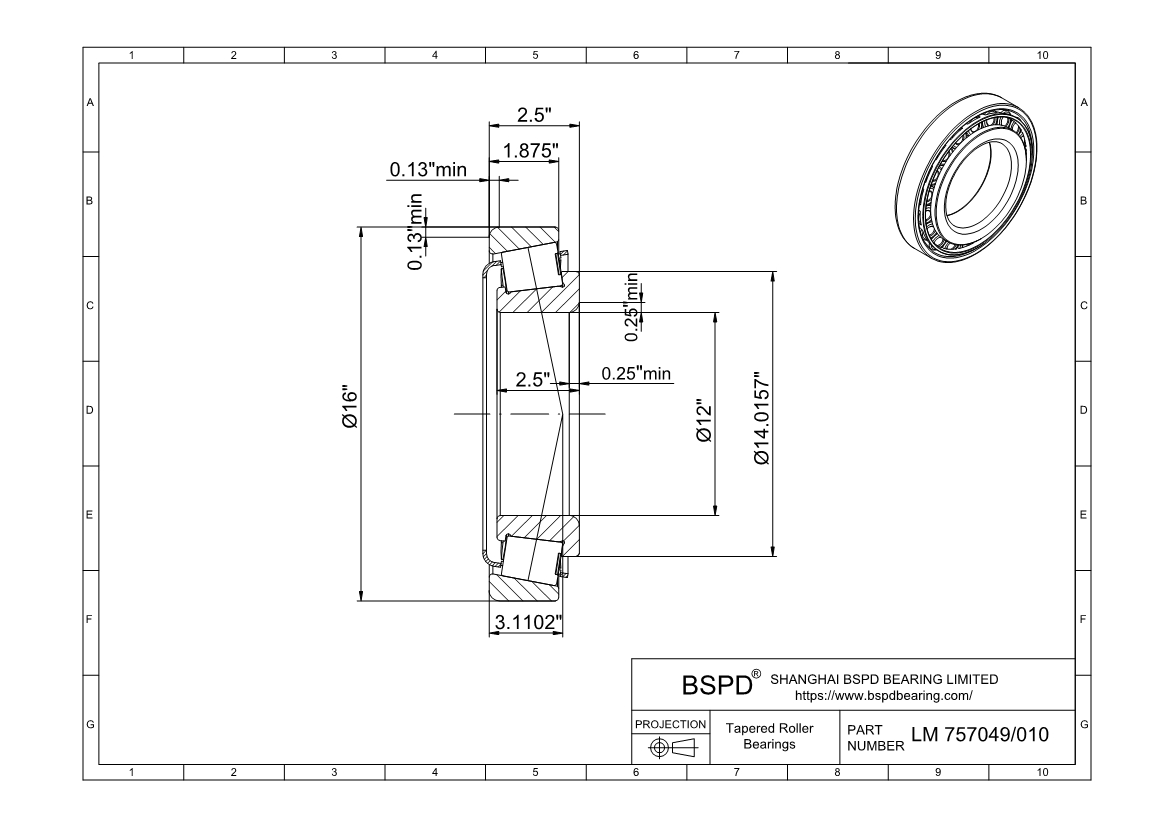

LM 757049/010 Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 12.0000 "; Outer Diameter: 16.0000 "; Width (Thickness): 2.5000 ";

LM 757049/010
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberLM 757049/010
Bore diameter12.0000 "
Outside diameter16.0000 "
Total width2.5000 "
Shoulder diameter of inner ring14.0158 "
Widthof inner ring2.5000 "
Width of outer ring1.8750 "
Chamfer minimum dimension of inner ring (r1,2)6.4 mm
Chamfer minimum dimension of outer ring (r3,4)3.3
Distance side face to pressure point (a)79
Basic dynamic load rating (Cr)775
Basic static load rating (Cor)1700
Fatigue load limit (Pu)143
Reference speed1100 r/min
Limiting speed1300 r/min
Mass22.5 kg
Limiting value (e)0.44
Axial load factor (Y)1.35
Axial load factor (Y0)0.8
Maximum diameter of shaft abutment (da)327 mm
Minimum diameter of shaft abutment (db)329 mm
Minimum diameter of housing abutment (Da)370 mm
Maximum diameter of housing abutment (Da)389 mm
Minimum diameter of housing abutment (Db)391 mm
Minimum width of space required in housing on large side face (C10 mm
Minimum width of space required in housing on small side face (C15.5 mm
Maximum Radius of shaft fillet (ra)6.4 mm
Maximum Radius of housing fillet (rb)3.3 mm
LM 757049/010
