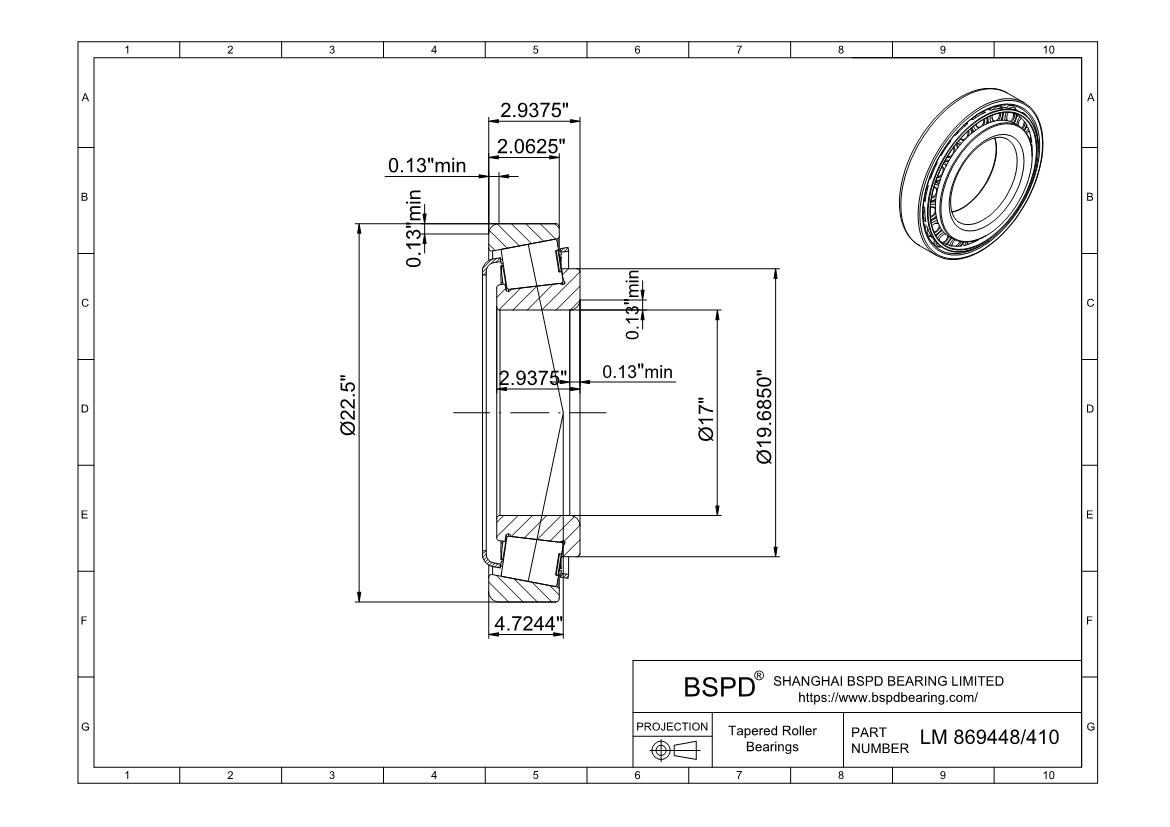

LM 869448/410 Inch Single Row Tapered Roller Bearings
Dimensions: Bore (Inner) Diameter: 17.0000 "; Outer Diameter: 22.5000 "; Width (Thickness): 2.9375 ";

LM 869448/410
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberLM 869448/410
Bore diameter17.0000 "
Outside diameter22.5000 "
Total width2.9375 "
Shoulder diameter of inner ring19.6850 "
Widthof inner ring2.9375 "
Width of outer ring2.0625 "
Chamfer minimum dimension of inner ring (r1,2)3.3 mm
Chamfer minimum dimension of outer ring (r3,4)3.3
Distance side face to pressure point (a)120
Basic dynamic load rating (Cr)1145
Basic static load rating (Cor)2550
Fatigue load limit (Pu)204
Reference speed670 r/min
Limiting speed900 r/min
Mass49 kg
Limiting value (e)0.54
Axial load factor (Y)1.1
Axial load factor (Y0)0.6
Maximum diameter of shaft abutment (da)462 mm
Minimum diameter of shaft abutment (db)455 mm
Minimum diameter of housing abutment (Da)520 mm
Maximum diameter of housing abutment (Da)550 mm
Minimum diameter of housing abutment (Db)549 mm
Minimum width of space required in housing on large side face (C8 mm
Minimum width of space required in housing on small side face (C22 mm
Maximum Radius of shaft fillet (ra)3.3 mm
Maximum Radius of housing fillet (rb)3.3 mm
LM 869448/410
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings LM 869448/410 ? Inch Single Row Tapered Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
