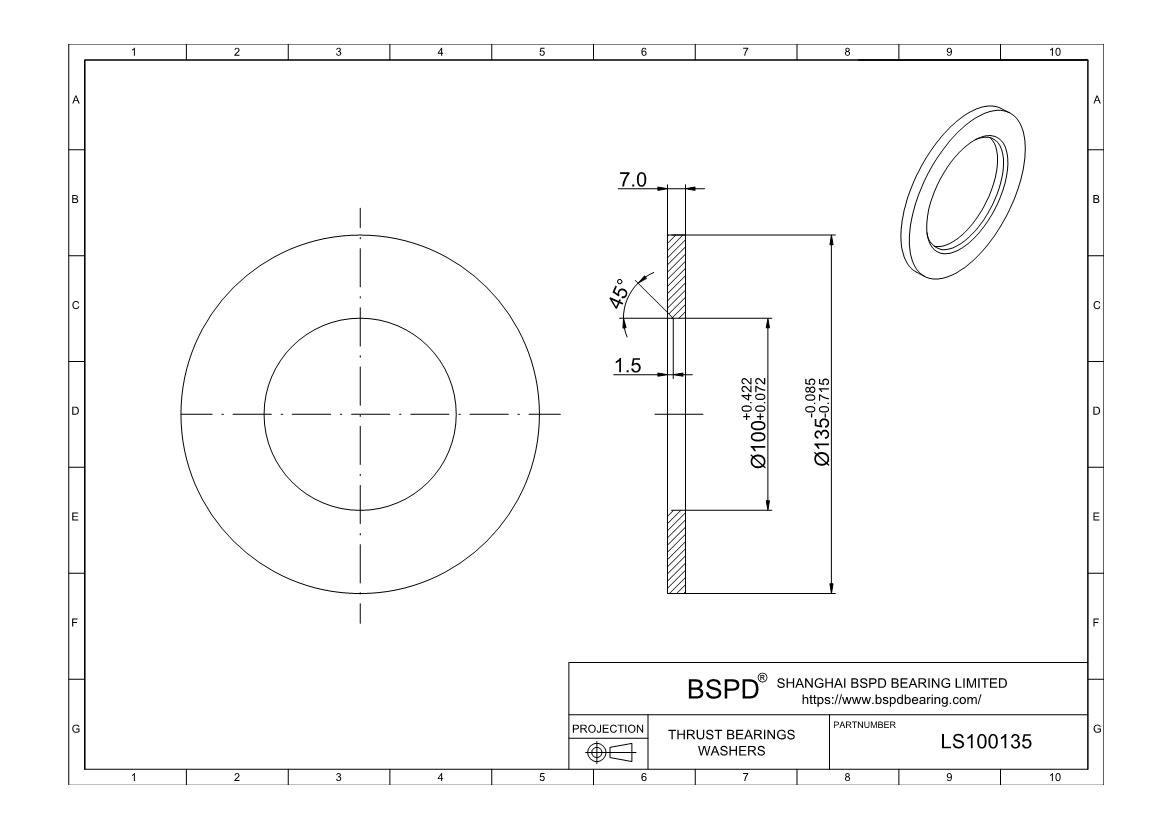

LS100135
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 135 mm； Width (Thickness): 7 mm;
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| System of Measurement | Metric |
| Part Number | LS100135 |
| ID | 100mm |
| ID Tolerance | 0.072mm to 0.422mm |
| OD | 135mm |
| OD Tolerance | -0.715mm to -0.085mm |
| Thickness | 7mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 350 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings LS100135 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
