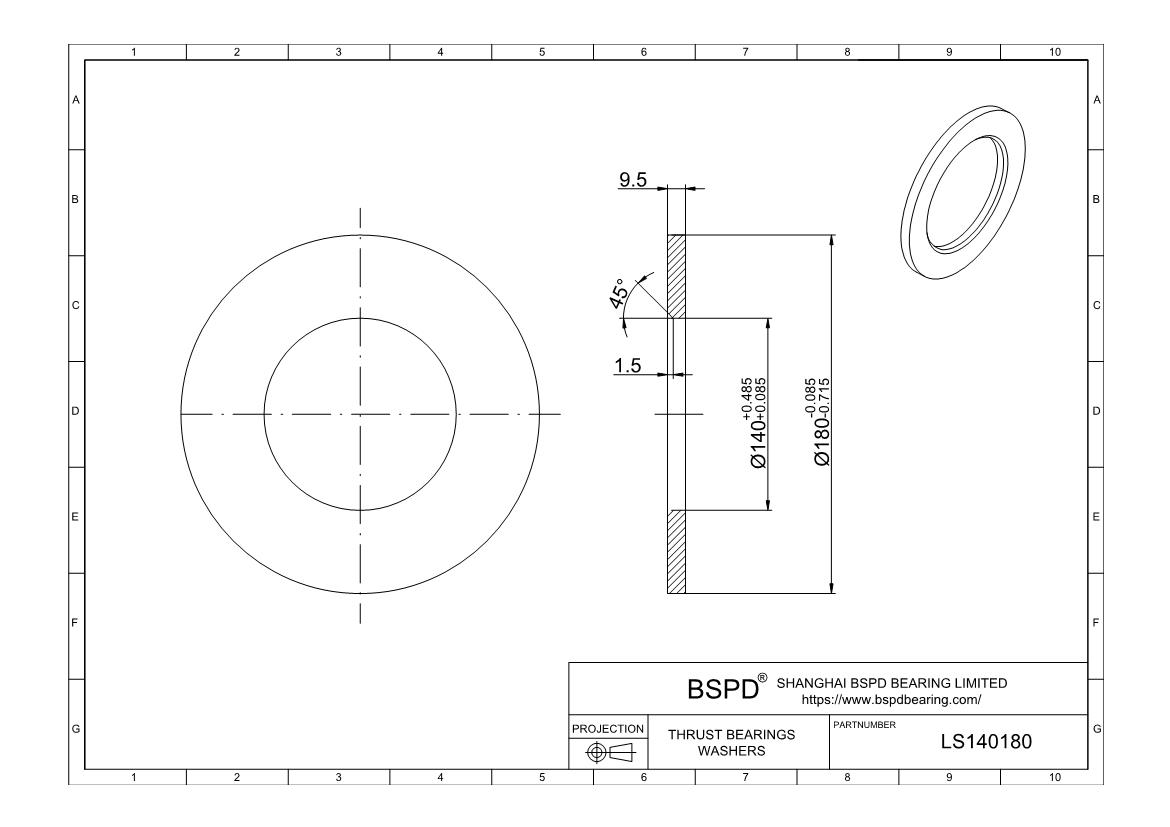

LS140180
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 140 mm； Outer Diameter: 180 mm； Width (Thickness): 9.5 mm;
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| System of Measurement | Metric |
| Part Number | LS140180 |
| ID | 140mm |
| ID Tolerance | 0.085mm to 0.485mm |
| OD | 180mm |
| OD Tolerance | -0.715mm to -0.085mm |
| Thickness | 9.5mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 749 |
Print PDF
Request a 3D CAD Model
