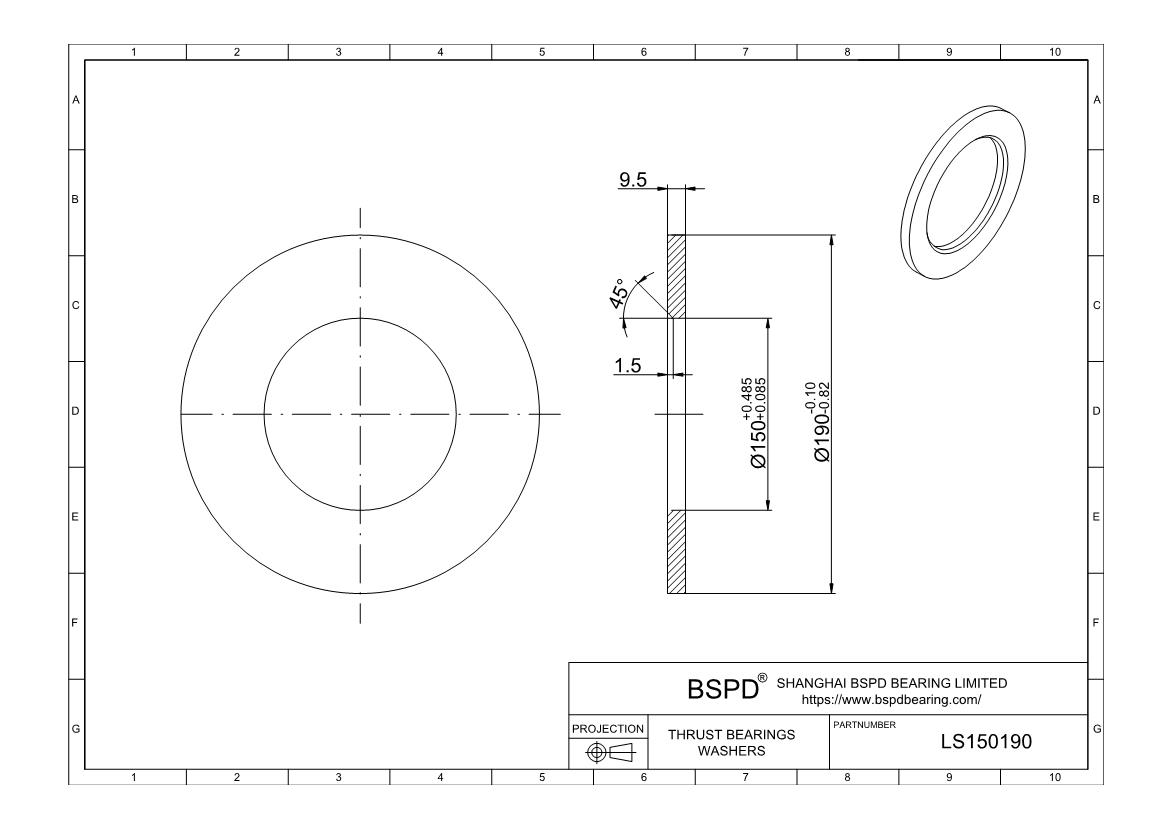

LS150190
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 190 mm； Width (Thickness): 9.5 mm;
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| System of Measurement | Metric |
| Part Number | LS150190 |
| ID | 150mm |
| ID Tolerance | 0.085mm to 0.485mm |
| OD | 190mm |
| OD Tolerance | -0.820mm to -0.1mm |
| Thickness | 9.5mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 796 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings LS150190 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
