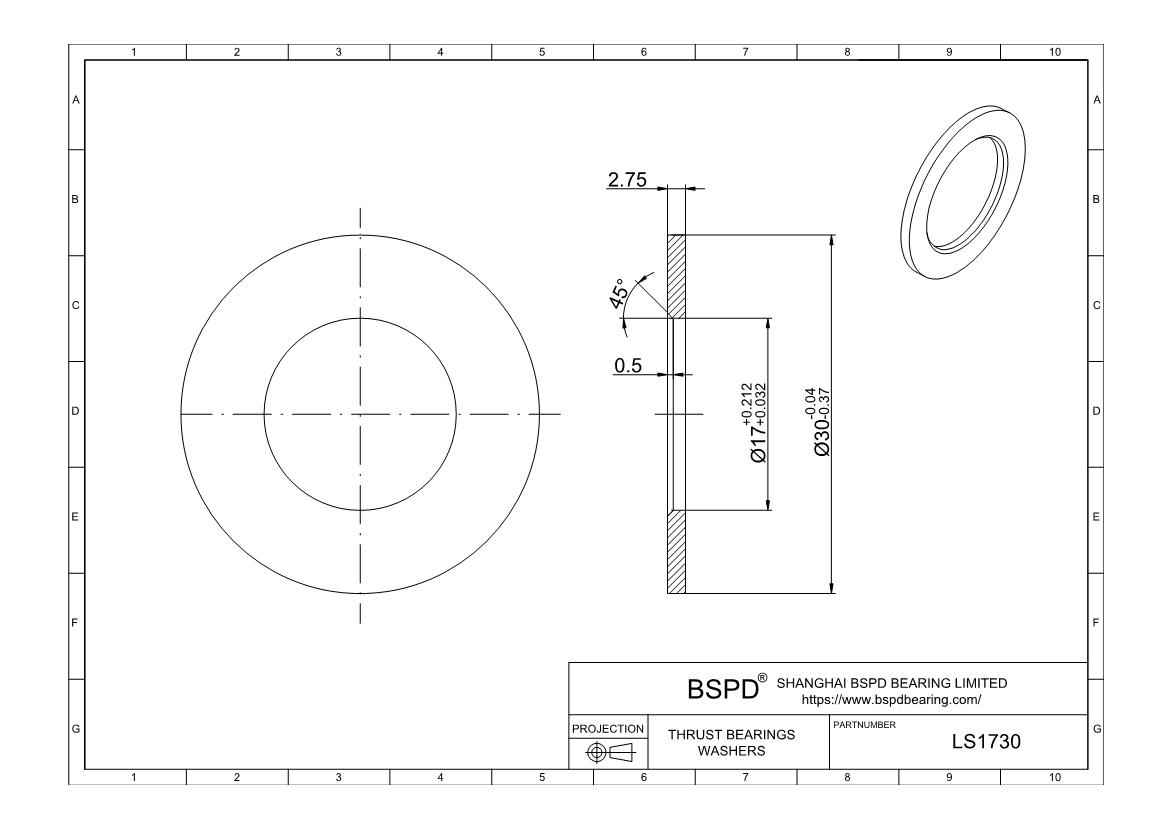

LS1730
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 17 mm； Outer Diameter: 30 mm； Width (Thickness): 2.75 mm;
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| System of Measurement | Metric |
| Part Number | LS1730 |
| ID | 17mm |
| ID Tolerance | 0.032mm to 0.212mm |
| OD | 30mm |
| OD Tolerance | -0.370mm to -0.04mm |
| Thickness | 2.75mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 9 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings LS1730 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
