LS2035
Needle Roller Thrust Bearings

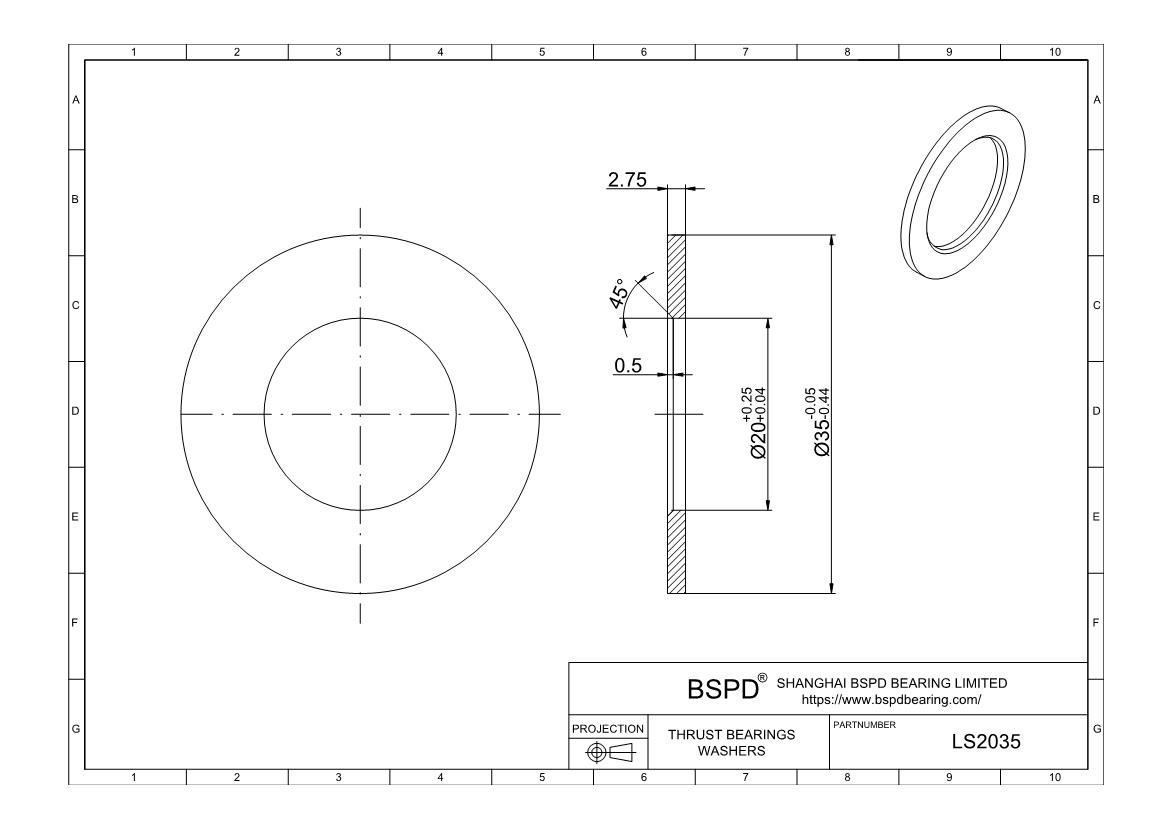

Dimensions: Bore (Inner) Diameter: 20 mm； Outer Diameter: 35 mm； Width (Thickness): 2.75 mm;
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| System of Measurement | Metric |
| Part Number | LS2035 |
| ID | 20mm |
| ID Tolerance | 0.04mm to 0.25mm |
| OD | 35mm |
| OD Tolerance | -0.440mm to -0.05mm |
| Thickness | 2.75mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 12 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
