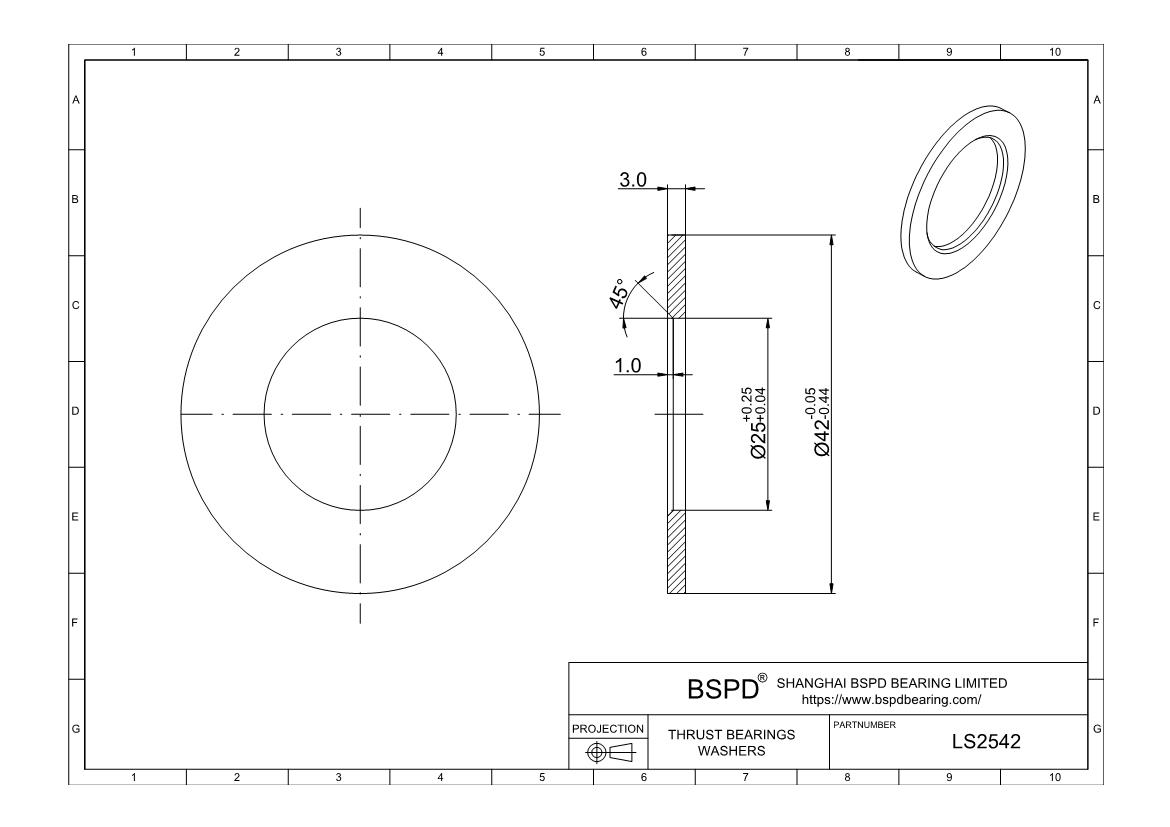

LS2542
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 25 mm； Outer Diameter: 42 mm； Width (Thickness): 3 mm;
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| System of Measurement | Metric |
| Part Number | LS2542 |
| ID | 25mm |
| ID Tolerance | 0.04mm to 0.25mm |
| OD | 42mm |
| OD Tolerance | -0.440mm to -0.05mm |
| Thickness | 3mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 19 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
