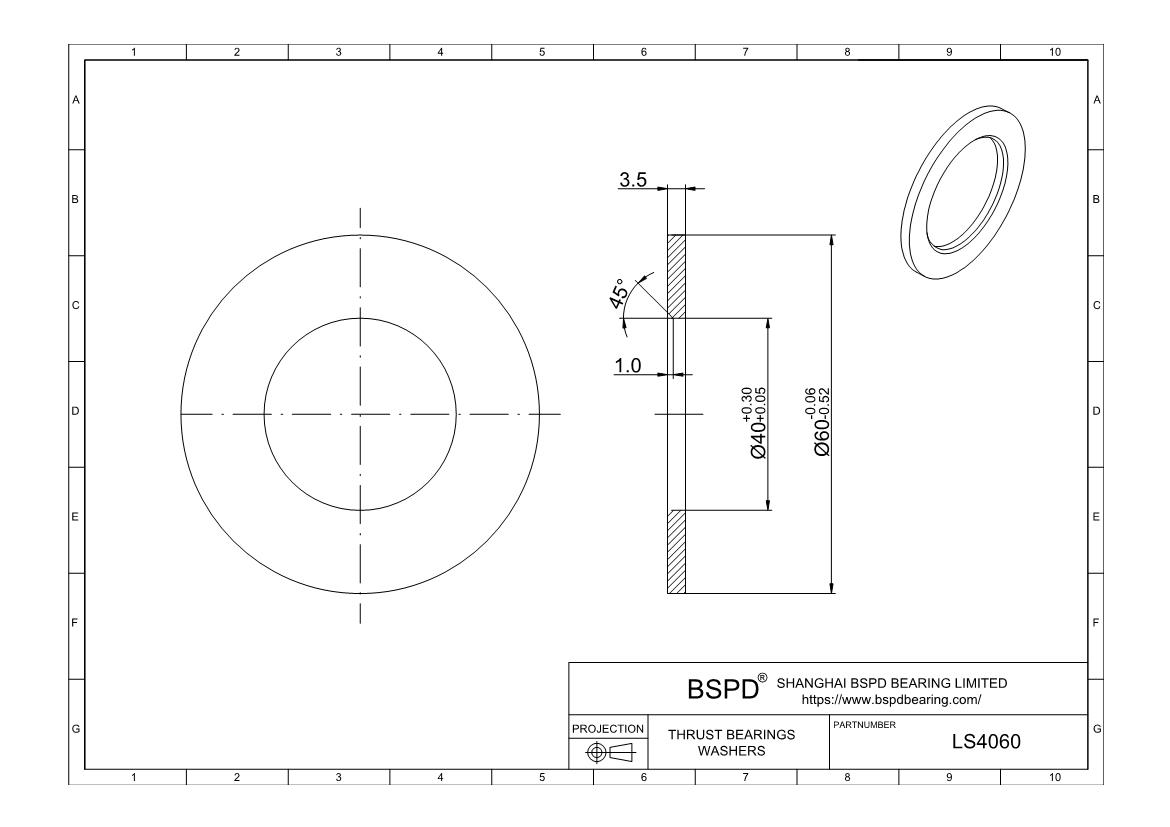

LS4060
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 60 mm； Width (Thickness): 3.5 mm;
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| System of Measurement | Metric |
| Part Number | LS4060 |
| ID | 40mm |
| ID Tolerance | 0.05mm to 0.3mm |
| OD | 60mm |
| OD Tolerance | -0.520mm to -0.06mm |
| Thickness | 3.5mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 37 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings LS4060 ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
