LS80105
Needle Roller Thrust Bearings

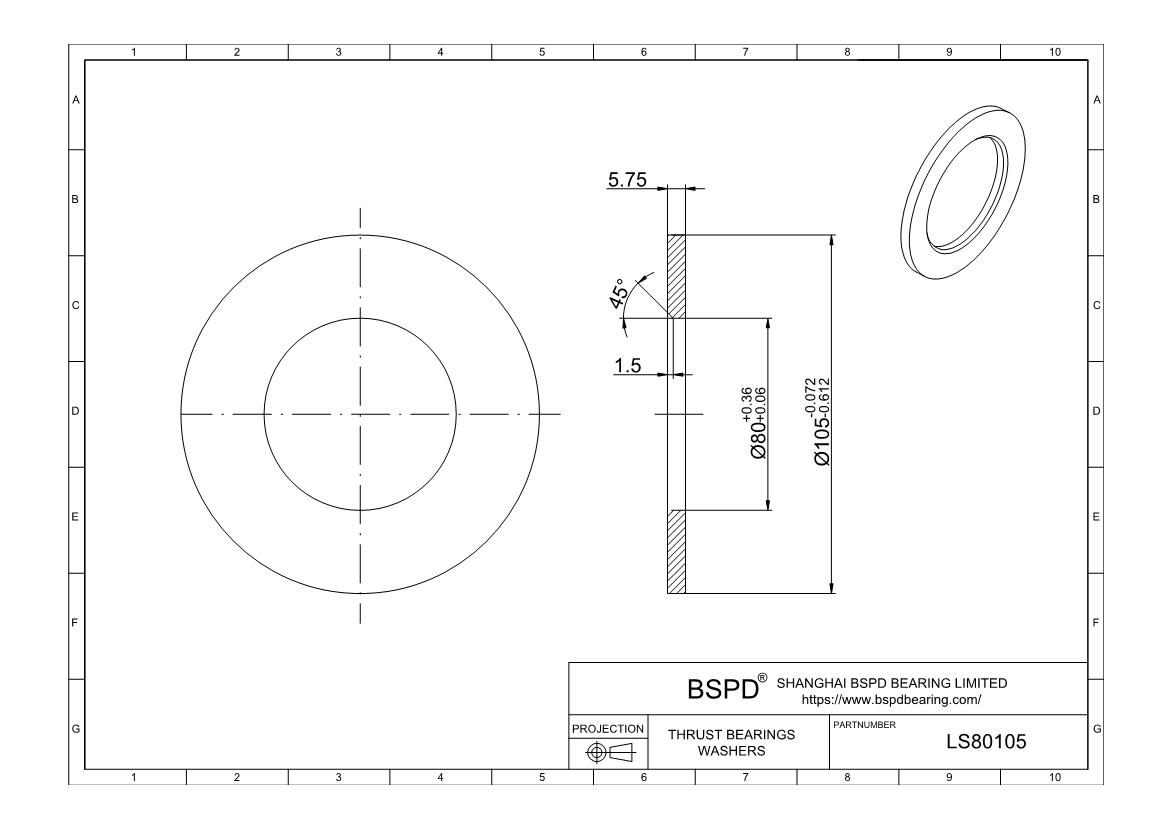

Dimensions: Bore (Inner) Diameter: 80 mm； Outer Diameter: 105 mm； Width (Thickness): 5.75 mm;
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| System of Measurement | Metric |
| Part Number | LS80105 |
| ID | 80mm |
| ID Tolerance | 0.06mm to 0.360mm |
| OD | 105mm |
| OD Tolerance | -0.612mm to -0.072mm |
| Thickness | 5.75mm |
| Material | Steel |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 144 |
Print PDF
Request a 3D CAD Model
