NA4902-2RSR-XL Heavy Duty Needle Roller Bearings (Machined)

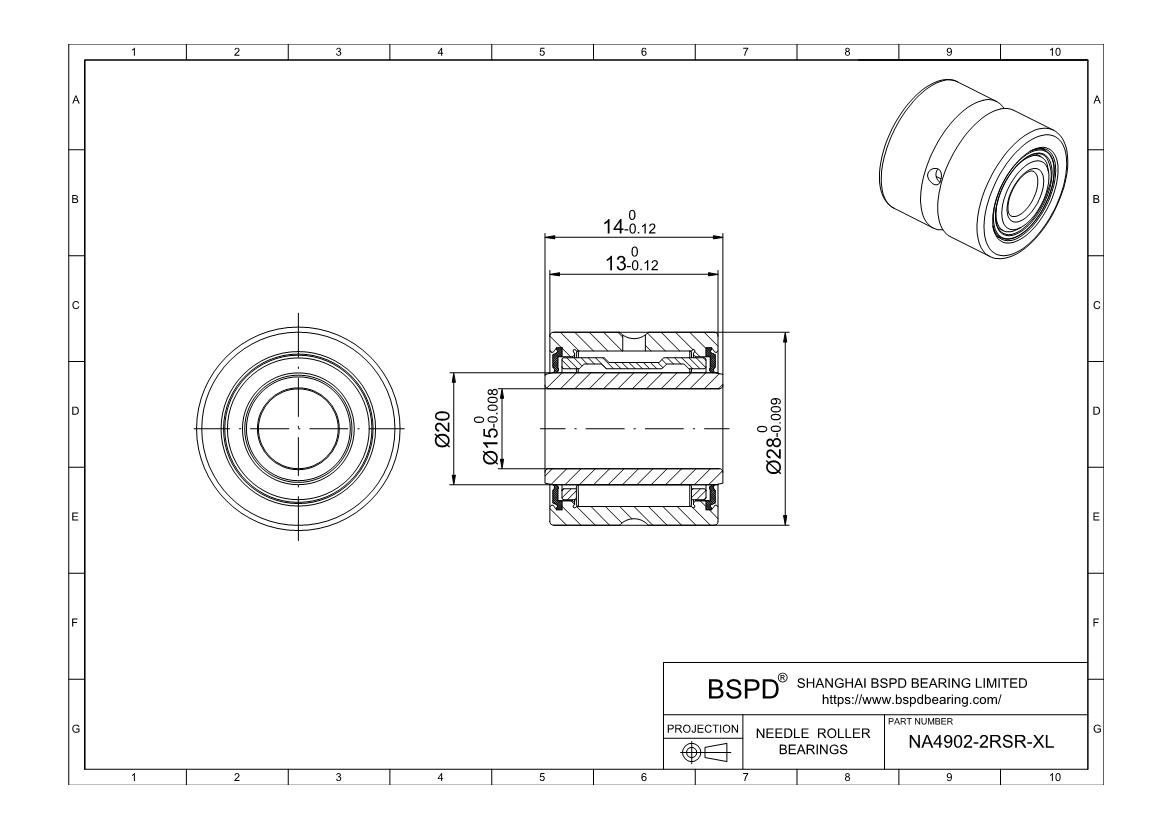

Dimensions: Bore (Inner) Diameter: 15 mm; Outer Diameter: 28 mm; Width (Thickness): 14 mm;

NA4902-2RSR-XL
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
System of Measurement Metric
Seal Type Double Seals
Part Number NA4902-2RSR-XL
For Shaft Diameter 15 mm
Bore Dia 15 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 28 mm
Outer Dia 28 mm
Outer Dia Tolerance -0.009mm to 0
Width 14 mm
Width Tolerance -0.12mm to 0
C 13 mm
F 20 mm
Chamfer Dimension (r min) 0,3 mm
Ring Material steel
Roller Material steel
Cage Material Steel
Dynamic Load Rating (Cr) (Newtons) 9700
Static Load Rating (Cor) (Newtons) 10300
Fatigue limit load(Cur) (Newtons) 2070
Max Speed (Grease) (RPM) 12600
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 37
NA4902-2RSR-XL
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings NA4902-2RSR-XL ? Heavy Duty Needle Roller Bearings (Machined) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
