NA4907-XL Heavy Duty Needle Roller Bearings (Machined)

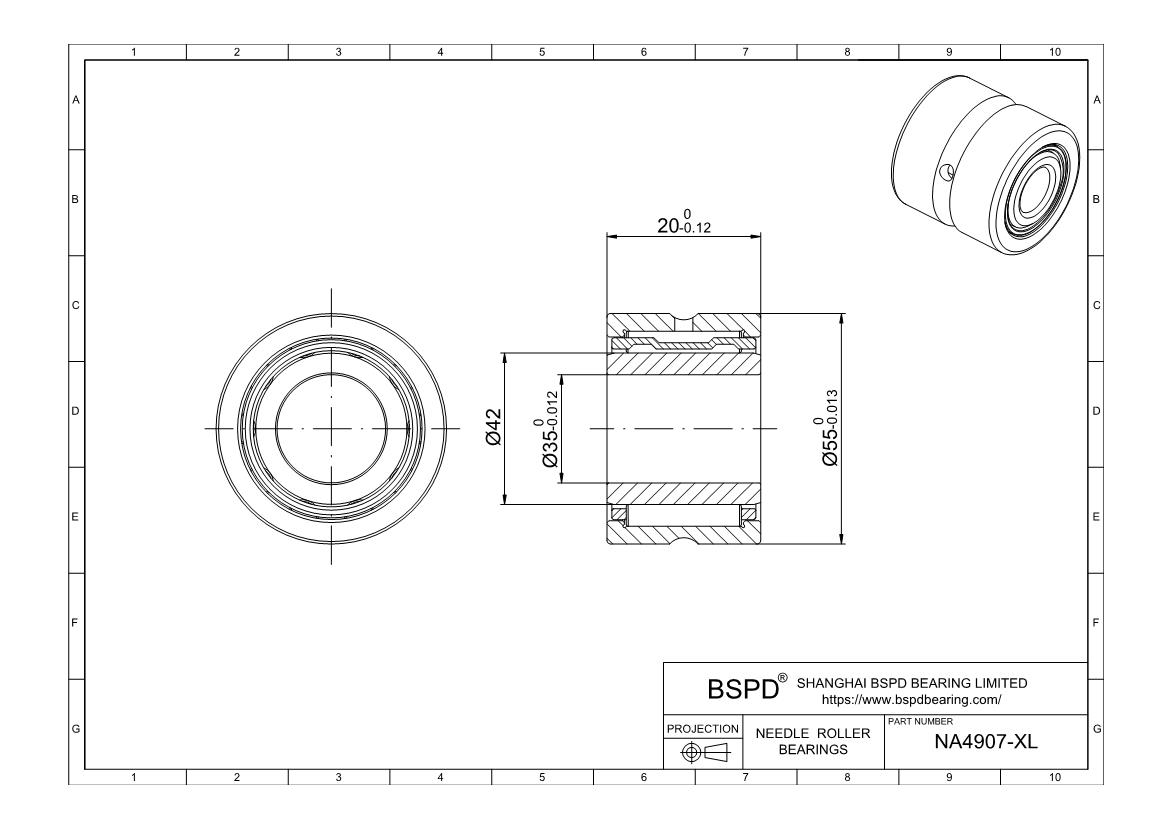

Dimensions: Bore (Inner) Diameter: 35 mm; Outer Diameter: 55 mm; Width (Thickness): 20 mm;

NA4907-XL
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
System of Measurement Metric
Seal Type Open
Part Number NA4907-XL
For Shaft Diameter 35 mm
Bore Dia 35 mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 55 mm
Outer Dia 55 mm
Outer Dia Tolerance -0.013mm to 0
Width 20 mm
Width Tolerance -0.12mm to 0
F 42 mm
Chamfer Dimension (r min) 0,6 mm
Ring Material steel
Roller Material steel
Cage Material Steel
Dynamic Load Rating (Cr) (Newtons) 35500
Static Load Rating (Cor) (Newtons) 50000
Fatigue limit load(Cur) (Newtons) 9600
Max Speed (Grease) (RPM) 10700
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 170
NA4907-XL
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings NA4907-XL ? Heavy Duty Needle Roller Bearings (Machined) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
