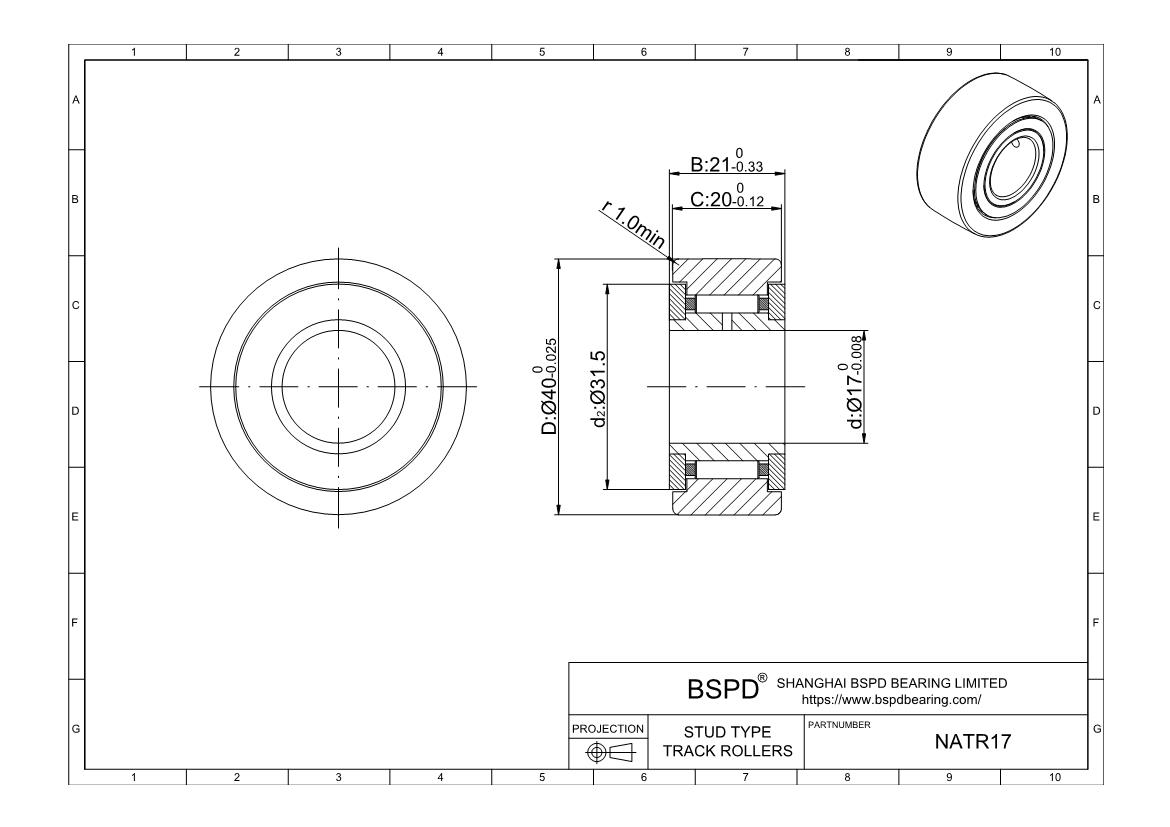

NATR17
Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 40 mm； Roller Width: 20 mm； Stud Dia: ； Stud Length: ；
REQUEST FOR QUOTE
Needle Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Guide Roller Type | Track |
| Track Roller Type | Round |
| For Load Direction | Radial |
| Roller Profile | Flat |
| Roller Style | Yoke |
| Roller Material | Steel |
| d | 17 mm |
| D | 40 mm |
| B | 21 mm |
| C | 20 mm |
| d2 | 31,5 mm |
| R | 500 mm |
| rmin | 1 mm |
| Cr w | 10900 N |
| Cur w | 2090 N |
| Maximum Speed | 2900 1/min |
| Temperature Range | -20 to 110 °C |
| Shaft Mount Type | Press Fit |
| Bearing Type | Needle Roller |
| With Seal | Yes |
| Lubrication | Required |
| RoHS | Compliant |
| Weight (g) | 144 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
