NCS1412 Heavy Duty Needle Roller Bearings (Machined)

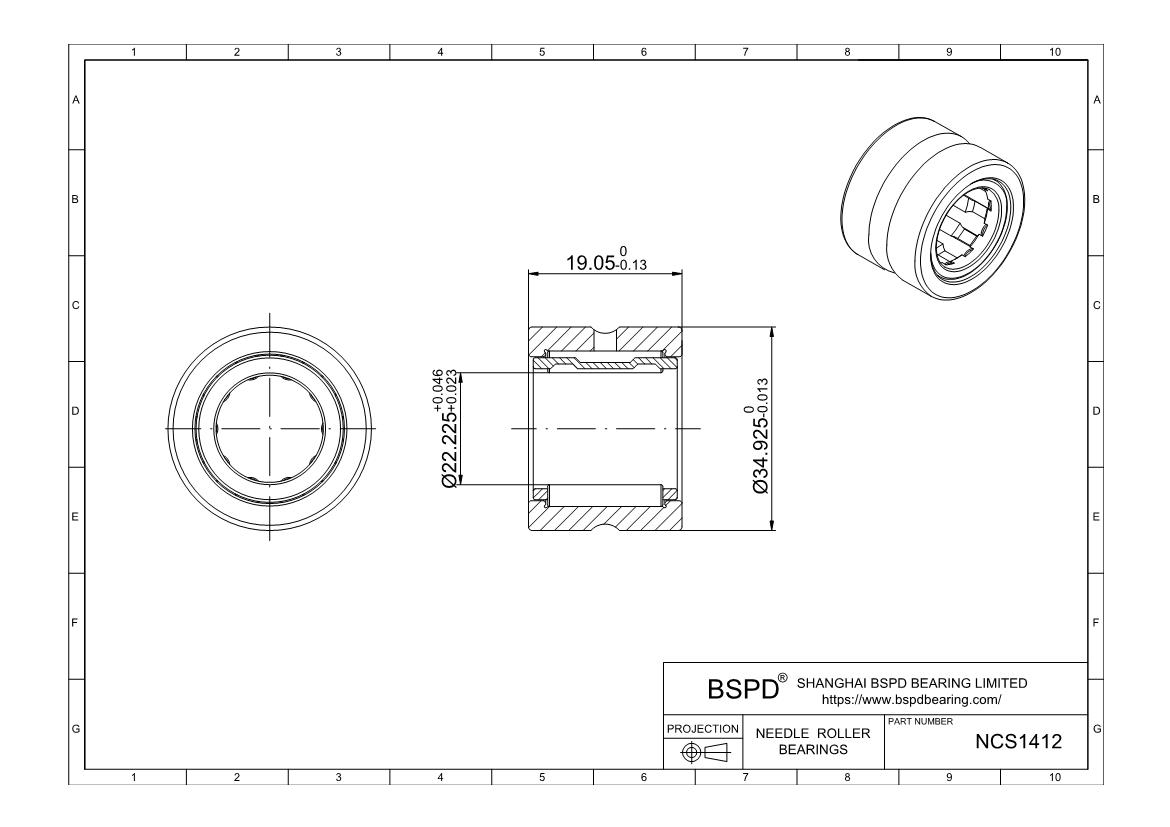

Dimensions: Bore (Inner) Diameter: 22,225 mm; Outer Diameter: 34,925 mm; Width (Thickness): 19,05 mm;

NCS1412
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
System of Measurement Inch
Seal Type Open
Part Number NCS1412
For Shaft Diameter 22,225 mm
Bore Dia 22,225 mm
Bore Dia Tolerance 0.023mm to 0.046mm
For Housing ID 34,925 mm
Outer Dia 34,925 mm
Outer Dia Tolerance -0.013mm to 0
Width 19,05 mm
Width Tolerance -0.13mm to 0
Ring Material steel
Roller Material steel
Cage Material Steel
Dynamic Load Rating (Cr) (Newtons) 22800
Static Load Rating (Cor) (Newtons) 27500
Max Speed (Grease) (RPM) 19000
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 59
NCS1412
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings NCS1412 ? Heavy Duty Needle Roller Bearings (Machined) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
