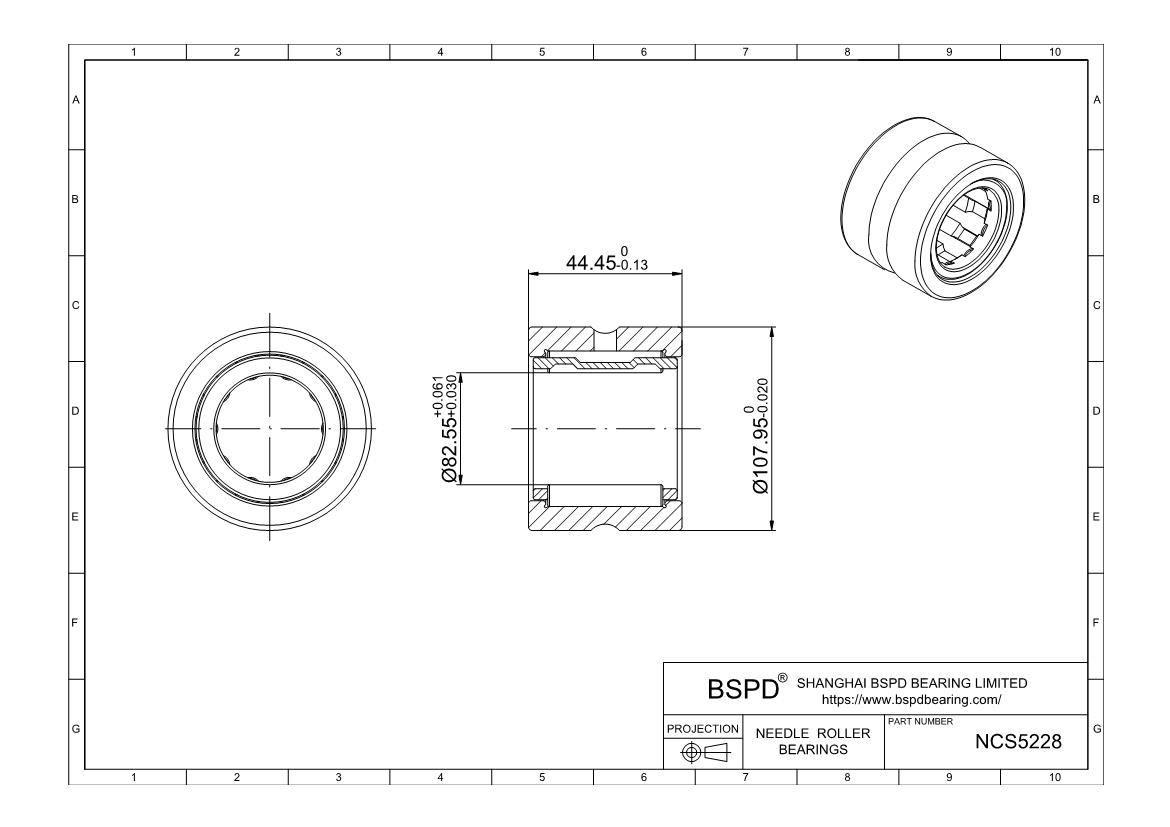

NCS5228
Heavy Duty Needle Roller Bearings (Machined)
Dimensions: Bore (Inner) Diameter: 82,55 mm； Outer Diameter: 107,95 mm； Width (Thickness): 44,45 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| System of Measurement | Inch |
| Seal Type | Open |
| Part Number | NCS5228 |
| For Shaft Diameter | 82,55 mm |
| Bore Dia | 82,55 mm |
| Bore Dia Tolerance | 0.03mm to 0.061mm |
| For Housing ID | 107,95 mm |
| Outer Dia | 107,95 mm |
| Outer Dia Tolerance | -0.02mm to 0 |
| Width | 44,45 mm |
| Width Tolerance | -0.13mm to 0 |
| Ring Material | steel |
| Roller Material | steel |
| Cage Material | Steel |
| Dynamic Load Rating (Cr) (Newtons) | 131000 |
| Static Load Rating (Cor) (Newtons) | 240000 |
| Max Speed (Grease) (RPM) | 5500 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 961 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings NCS5228 ? Heavy Duty Needle Roller Bearings (Machined) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
