NK10/12-TV-XL Heavy Duty Needle Roller Bearings (Machined)

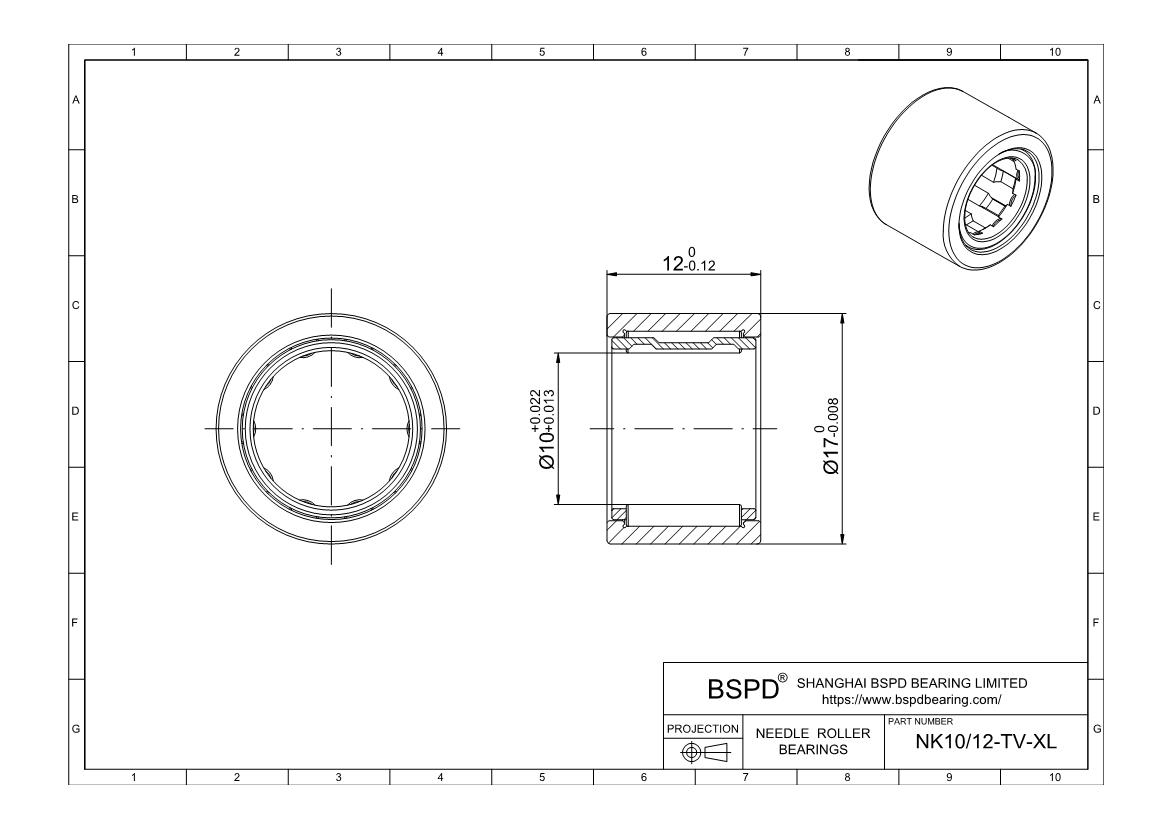

Dimensions: Bore (Inner) Diameter: 10 mm; Outer Diameter: 17 mm; Width (Thickness): 12 mm;

NK10/12-TV-XL
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
System of Measurement Metric
Seal Type Open
Part Number NK10/12-TV-XL
For Shaft Diameter 10mm
Bore Dia 10mm
Bore Dia Tolerance 0.013mm to 0.022mm
For Housing ID 17mm
Outer Dia 17mm
Outer Dia Tolerance -0.008mm to 0
Width 12mm
Width Tolerance -0.12mm to 0
Chamfer Dimension (r min) 0.3mm
Ring Material steel
Roller Material steel
Cage Material PA66
Dynamic Load Rating (Cr) (Newtons) 5300
Static Load Rating (Cor) (Newtons) 5500
Fatigue limit load(Cur) (Newtons) 940
Max Speed (Grease) (RPM) 29500
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 10.1
NK10/12-TV-XL
