NK9/16-TV-XL Heavy Duty Needle Roller Bearings (Machined)

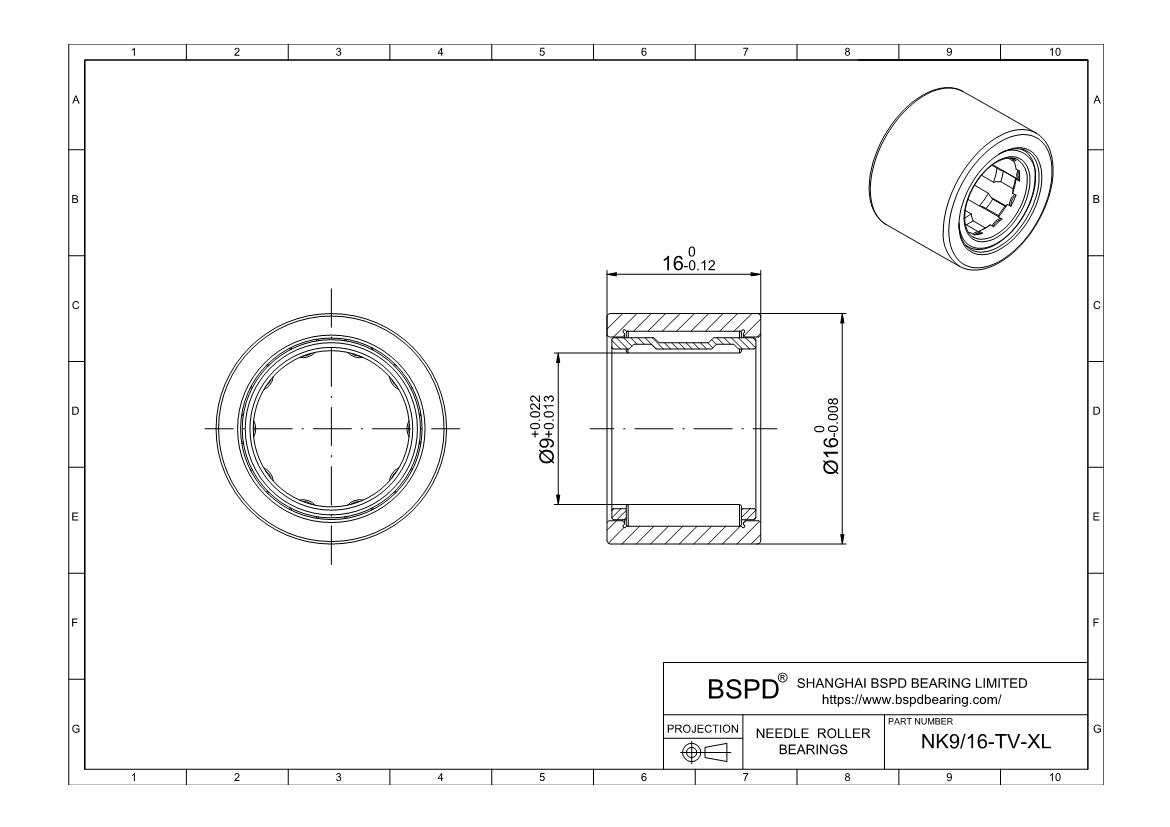

Dimensions: Bore (Inner) Diameter: 9 mm; Outer Diameter: 16 mm; Width (Thickness): 16 mm;

NK9/16-TV-XL
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
System of Measurement Metric
Seal Type Open
Part Number NK9/16-TV-XL
For Shaft Diameter 9mm
Bore Dia 9mm
Bore Dia Tolerance 0.013mm to 0.022mm
For Housing ID 16mm
Outer Dia 16mm
Outer Dia Tolerance -0.008mm to 0
Width 16mm
Width Tolerance -0.12mm to 0
Chamfer Dimension (r min) 0.3mm
Ring Material steel
Roller Material steel
Cage Material PA66
Dynamic Load Rating (Cr) (Newtons) 6600
Static Load Rating (Cor) (Newtons) 7100
Fatigue limit load(Cur) (Newtons) 1210
Max Speed (Grease) (RPM) 31000
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 12.8
NK9/16-TV-XL
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings NK9/16-TV-XL ? Heavy Duty Needle Roller Bearings (Machined) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
