NUKRE40 Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 40 mm; Roller Width: ; Stud Dia: 18 mm; Stud Length: ;

NUKRE40
REQUEST FOR QUOTE
* *
Send
Product Attributes
Guide Roller Type Track
Track Roller Type Round
For Load Direction Radial
Roller Profile Flat
Roller Style Threaded Stud
Roller Material Steel

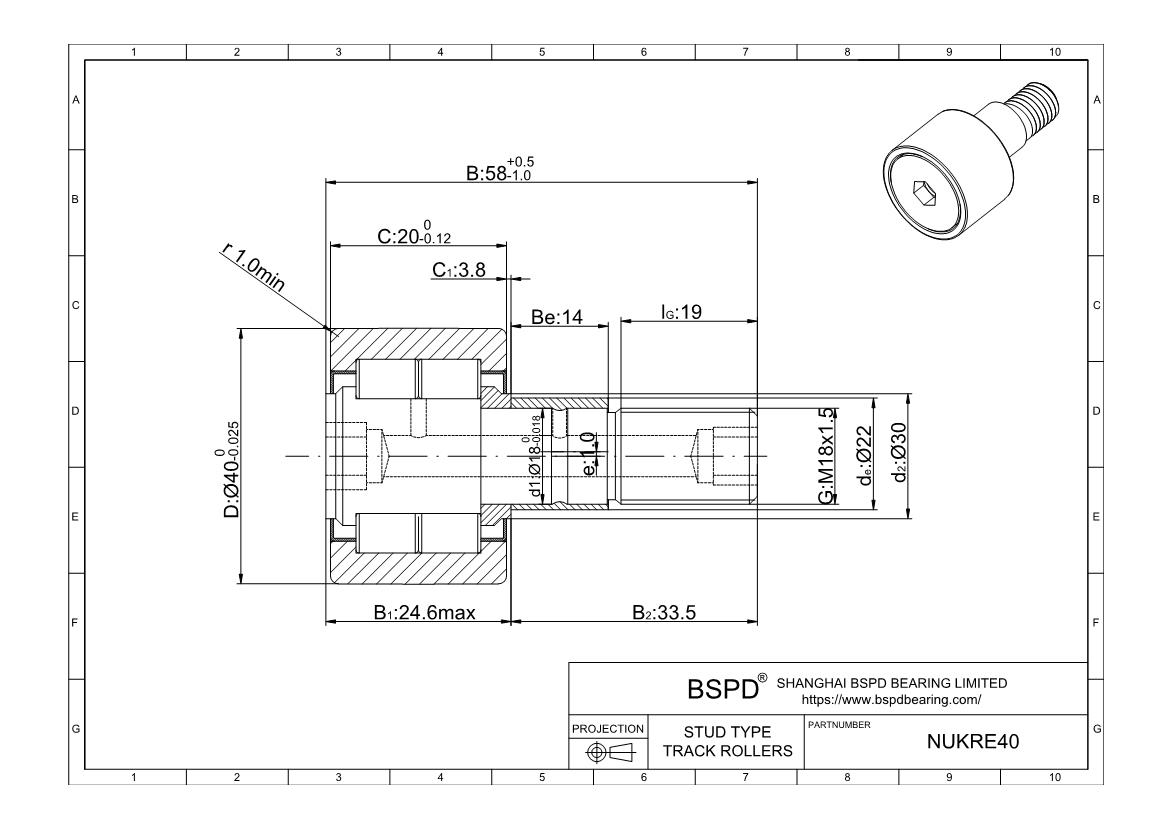

D 40 mm
de 22 mm
B 58 mm
B1 max 24,6 mm
B2 33,5 mm
Be 14 mm
C 20 mm
C1 3,8 mm
d1 18 mm
d2 30 mm
e 1 mm
G M18x1,5
IG 19 mm
rmin 1 mm
W 8 mm
Cr w 18700 N
Cur w 3150 N
Maximum Speed 5500 1/min
Temperature Range -20 to 110 °C
Shaft Mount Type Press Fit
Bearing Type Needle Roller
With Seal Yes
Lubrication Required
RoHS Compliant
Weight (g) 258
NUKRE40
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
