PI060912
Inner Rings

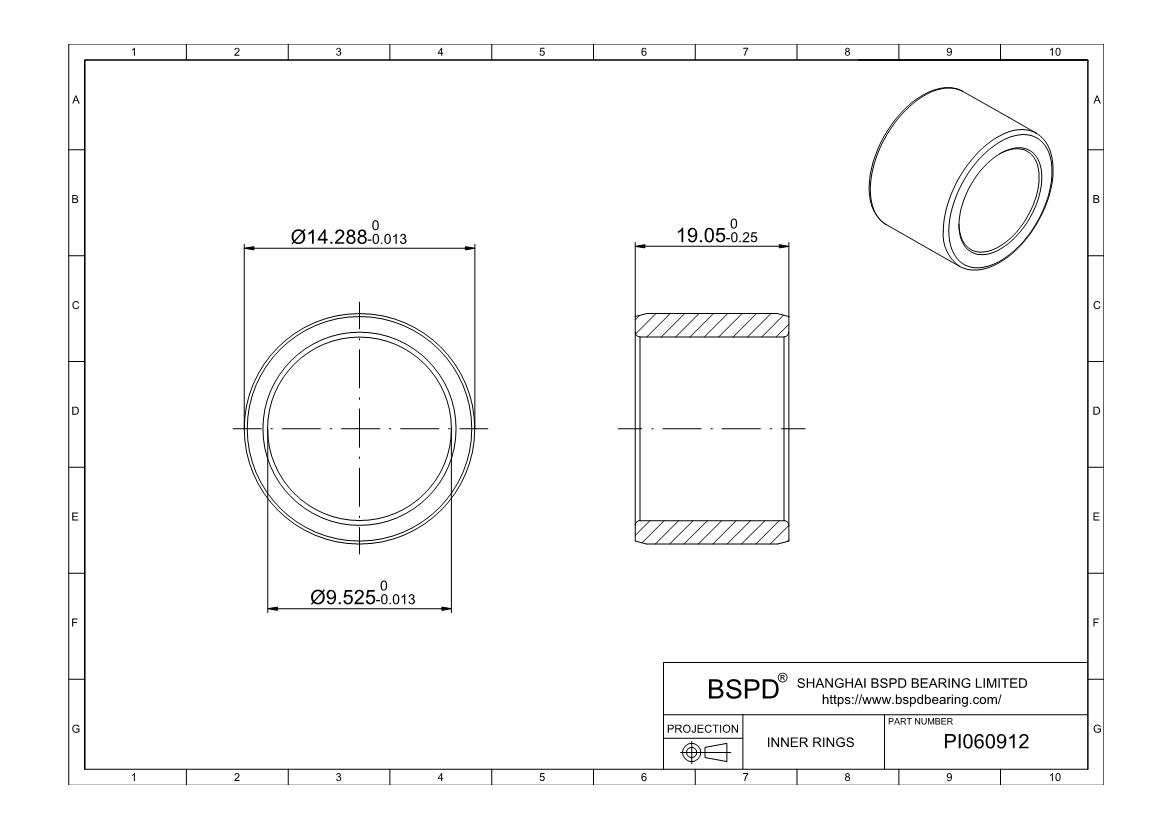

Dimensions: Bore (Inner) Diameter: 3/8"； Outer Diameter: 0.5625"； Width (Thickness): 0.75";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | PI060912 |
| For Shaft Diameter | 3/8" | 9.525 mm |
| Bore Dia (d) | 3/8" | 9.525 mm |
| Bore Dia Tolerance | -0.013mm to 0 |
| Outer Dia | 0.5625" | 14.288 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 0.75" | 19.05 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 13.4 |
Print PDF
Request a 3D CAD Model
