PI141812
Inner Rings

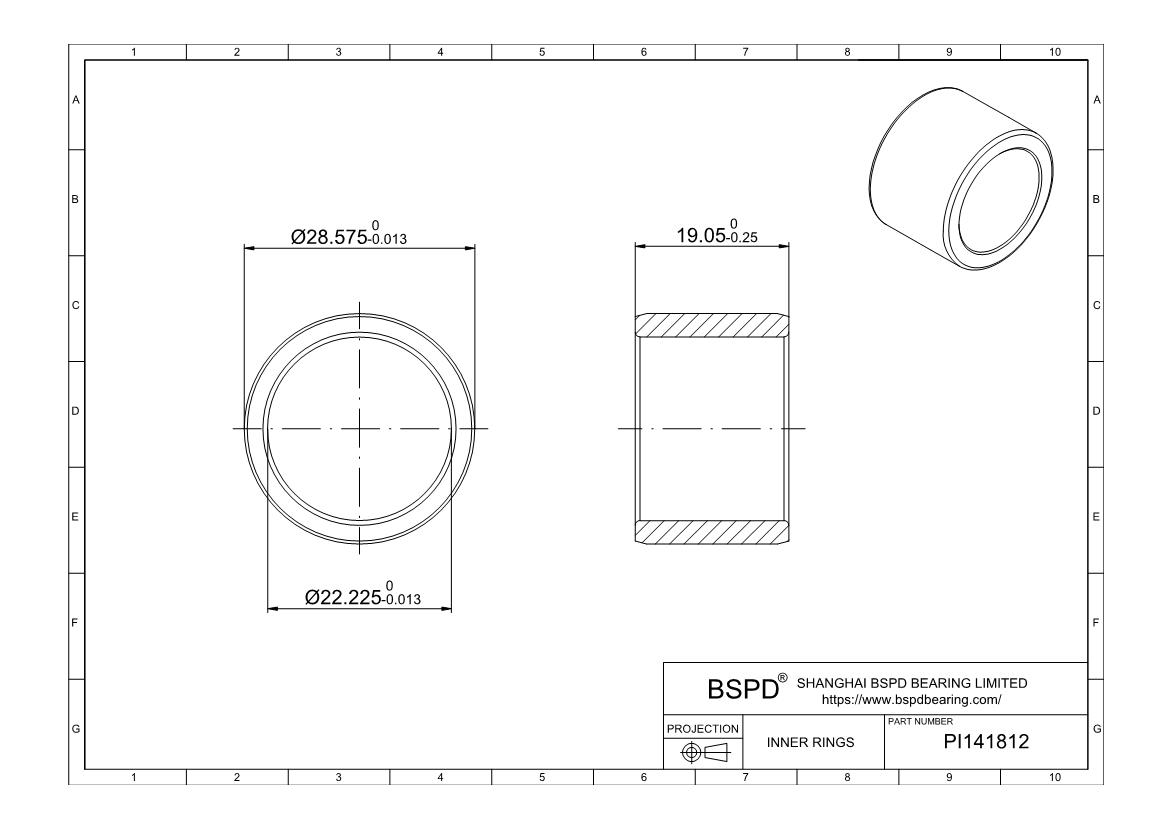

Dimensions: Bore (Inner) Diameter: 7/8"； Outer Diameter: 1.125"； Width (Thickness): 0.75";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | PI141812 |
| For Shaft Diameter | 7/8" | 22.225 mm |
| Bore Dia (d) | 7/8" | 22.225 mm |
| Bore Dia Tolerance | -0.013mm to 0 |
| Outer Dia | 1.125" | 28.575 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 0.75" | 19.05 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 36.3 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings PI141812 ? Inner Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
