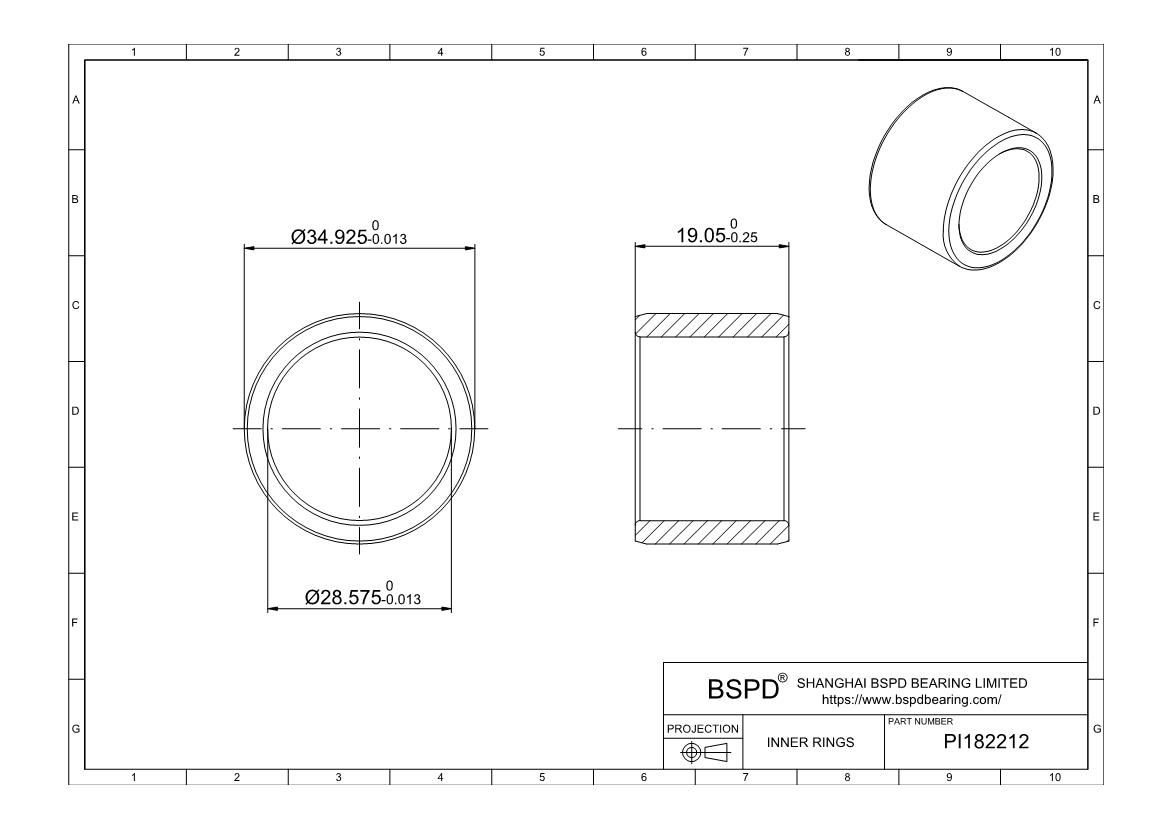

PI182212
Inner Rings
Dimensions: Bore (Inner) Diameter: 1 1/8"； Outer Diameter: 1.375"； Width (Thickness): 0.75";
REQUEST FOR QUOTE
Product Attributes
| System of Measurement | Inch |
| Part Number | PI182212 |
| For Shaft Diameter | 1 1/8" | 28.575 mm |
| Bore Dia (d) | 1 1/8" | 28.575 mm |
| Bore Dia Tolerance | -0.013mm to 0 |
| Outer Dia | 1.375" | 34.925 mm |
| Outer Dia Tolerance | -0.013mm to 0 |
| Width (B) | 0.75" | 19.05 mm |
| Width Tolerance | -0.25mm to 0 |
| Ring Material | Steel |
| Lubrication | Lubricated |
| RoHS | Compliant |
| Weight (g) | 45.1 |
Print PDF
Request a 3D CAD Model
