R09 Miniature Bearing

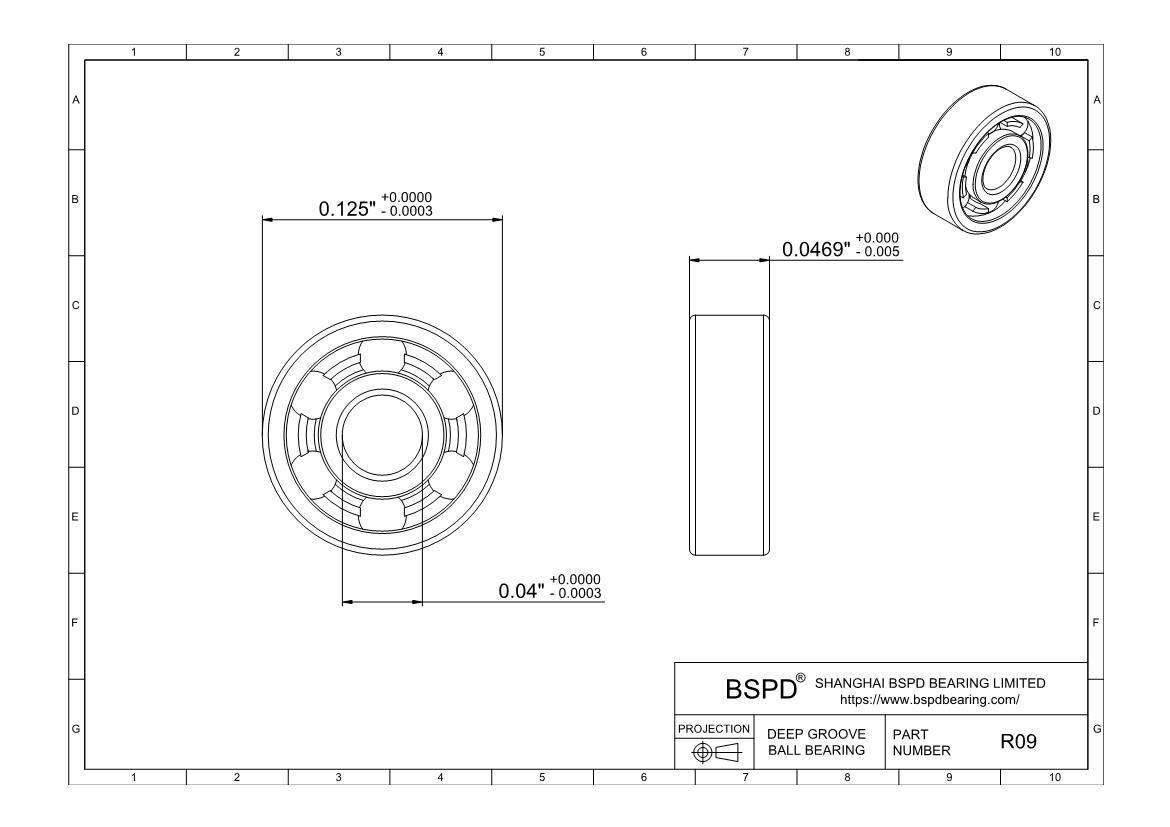

Dimensions: Bore (Inner) Diameter: 0.04"; Outer Diameter: 0.1250"; Width (Thickness): 0.0469";

R09
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number R09
For Shaft Diameter 1/25"
Bore Dia (d) 0.04" | 1.016 mm
Bore Dia Tolerance -0.0003" to 0" | -0.008mm to 0
For Housing ID 1/8"
Outer Dia (D) 0.1250" | 3.175 mm
Outer Dia Tolerance -0.0003" to 0" | -0.008mm to 0
Width (B) 0.0469" | 1.191 mm
Width Tolerance -0.005" to 0" | -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 88.98
Static Load Rating (Cor) (Newtons) 22.25
Max Speed (Grease) (X1000 RPM) 130
Max Speed (Oil) (X1000 RPM)  150
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.00008" to 0.0005" | 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 6
Ball Dia 0.635 mm
Weight (grams) 0.05
R09
