R144ZZ Miniature Bearing

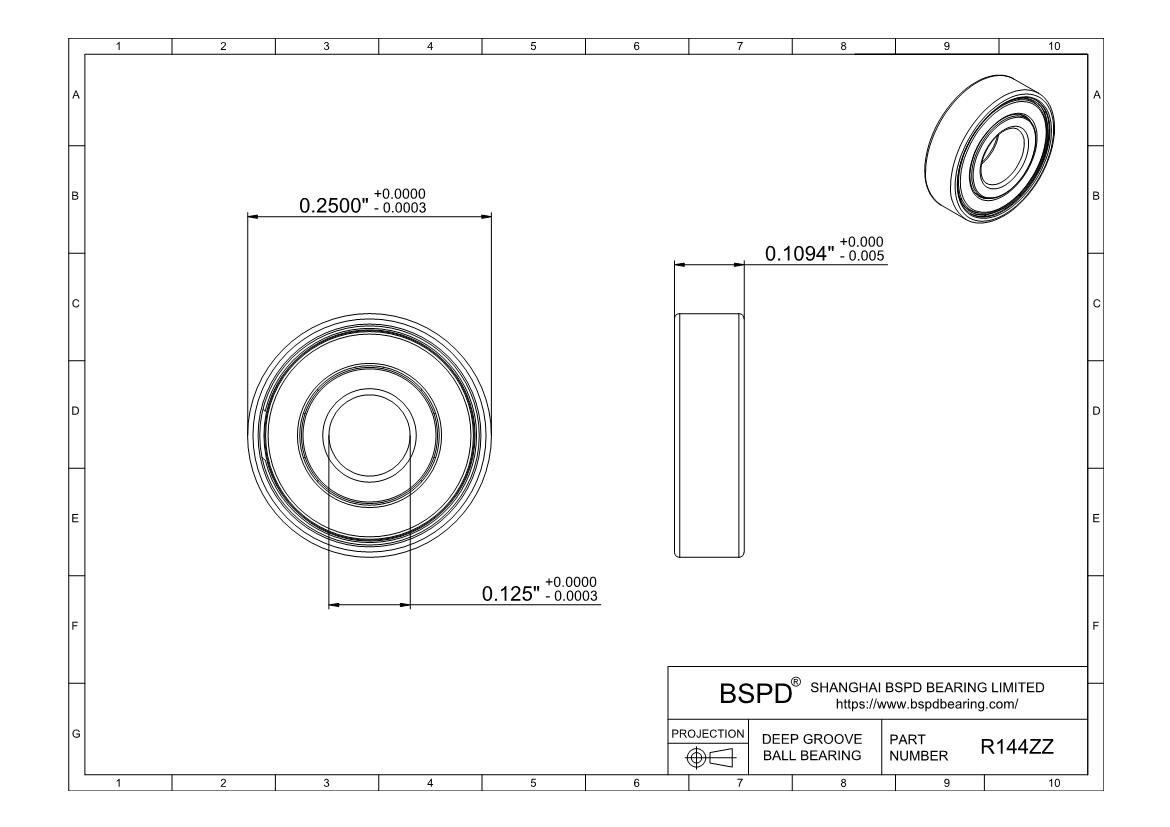

Dimensions: Bore (Inner) Diameter: 0.125"; Outer Diameter: 0.2500"; Width (Thickness): 0.1094";

R144ZZ
Slewing Bearings of similar size
same inner diameter
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number R144zz
For Shaft Diameter 1/8"
Bore Dia (d) 0.125" | 3.175 mm
Bore Dia Tolerance -0.0003" to 0" | -0.008mm to 0
For Housing ID 1/4"
Outer Dia (D) 0.2500" | 6.35 mm
Outer Dia Tolerance -0.0003" to 0" | -0.008mm to 0
Width (B) 0.1094" | 2.779 mm
Width Tolerance -0.005" to 0" | -0.12mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 240.26
Static Load Rating (Cor) (Newtons) 75.64
Max Speed (Grease) (X1000 RPM) 67
Max Speed (Oil) (X1000 RPM)  80
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.00008" to 0.0005" | 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 7
Ball Dia 1.001 mm
Weight (grams) 0.4
R144ZZ
