R22ZZ Deep Groove Ball Bearings

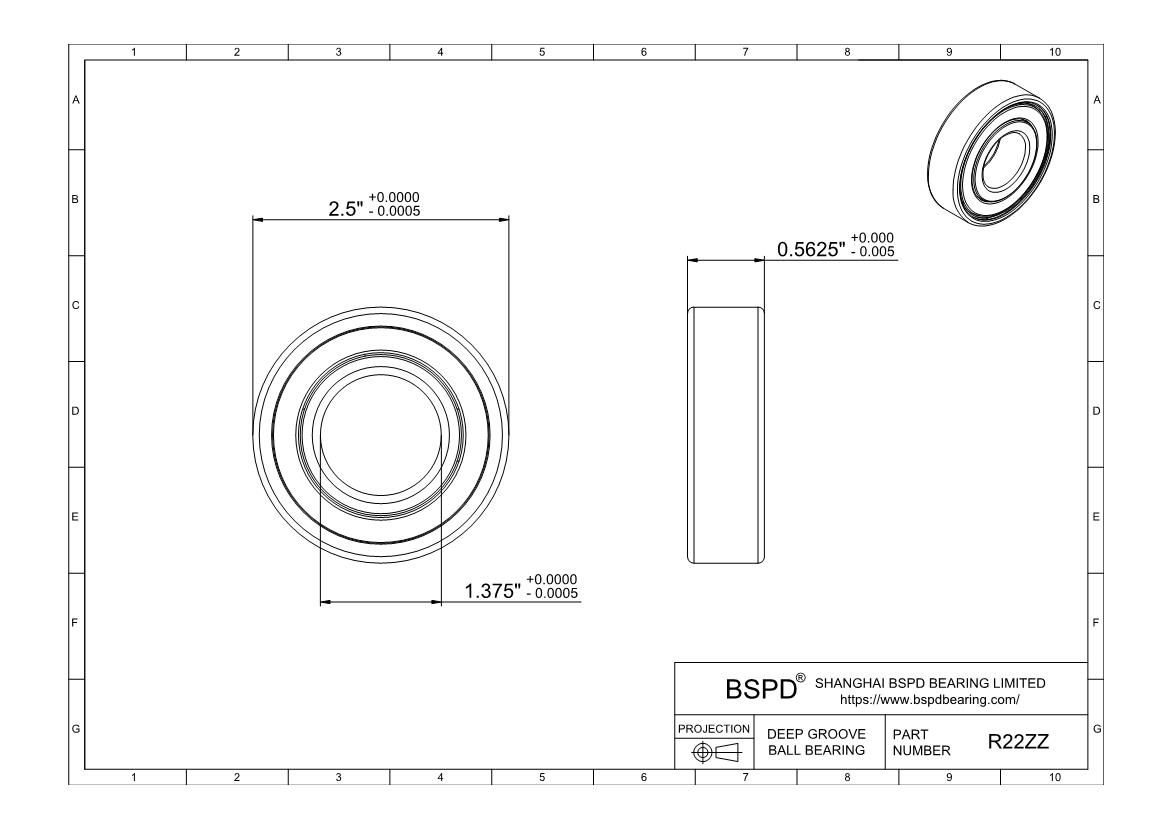

Dimensions: Bore (Inner) Diameter: 1.375"; Outer Diameter: 2.5"; Width (Thickness): 0.5625";

R22ZZ
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Shielded
Part Number R22ZZ
For Shaft Diameter 1.375"
Bore Dia (d) 1.375" | 34.925 mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 2.5"
Outer Dia (D) 2.5" | 63.5 mm
Outer Dia Tolerance -0.013mm to 0
Width (B) 0.5625" | 14.288 mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (lbs) 4067
Static Load Rating (Cor) (lbs) 2247
Max Speed (Grease) (X1000 RPM) 7
Max Speed (Oil) (X1000 RPM)  8
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Ball Qty 11
Ball Dia 0.3125
Weight (grams) 105
