R24-2RS Deep Groove Ball Bearings

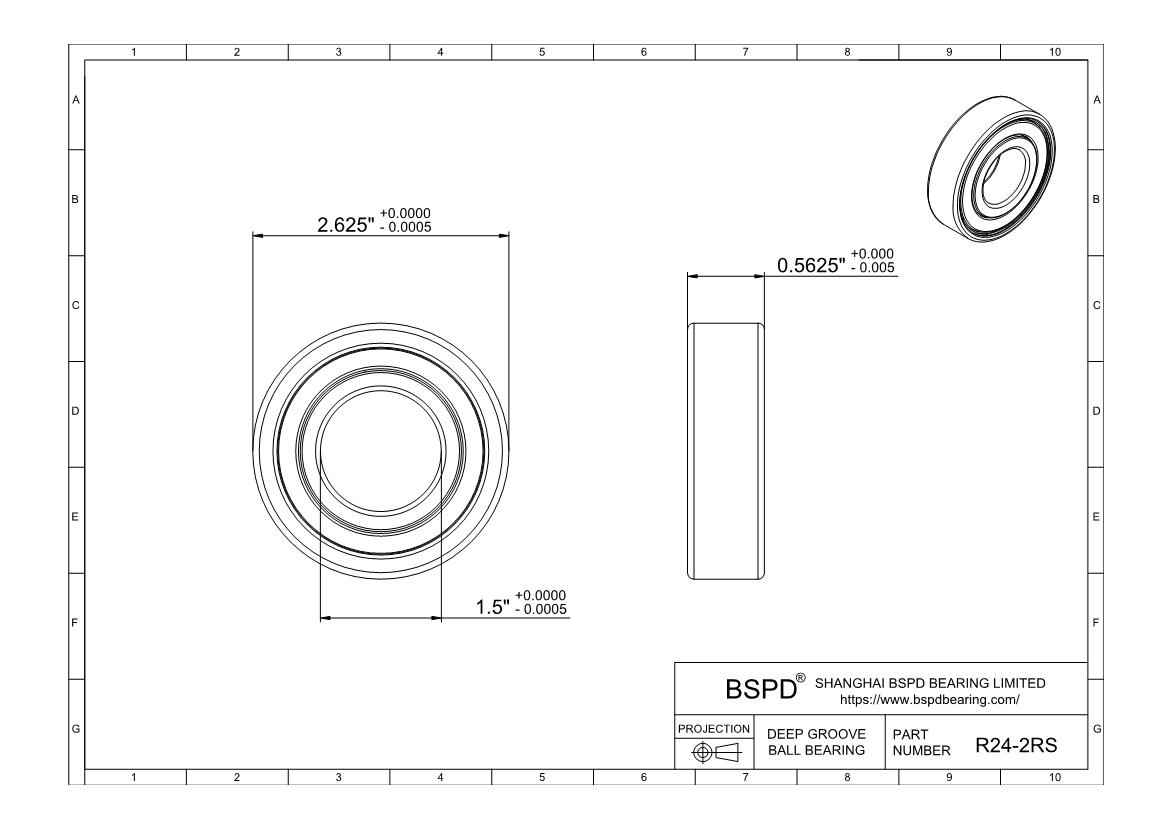

Dimensions: Bore (Inner) Diameter: 1.5"； Outer Diameter: 2.625"； Width (Thickness): 0.5625";

R24-2RS
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Part Number R24 2RS
For Shaft Diameter 1.5"
Bore Dia (d) 1.5" | 38.1 mm
Bore Dia Tolerance -0.012mm to 0
For Housing ID 2.625"
Outer Dia (D) 2.625" | 66.675 mm
Outer Dia Tolerance -0.013mm to 0
Width (B) 0.5625" | 14.288 mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (lbs) 4426
Static Load Rating (Cor) (lbs) 2446
Max Speed (Grease) (X1000 RPM) 5
Max Speed (Oil) (X1000 RPM)  6
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.006mm to 0.020mm
RoHS Compliant
Ball Qty 12
Ball Dia 0.3125
Weight (grams) 140
R24-2RS
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
