RLS16 Deep Groove Ball Bearings

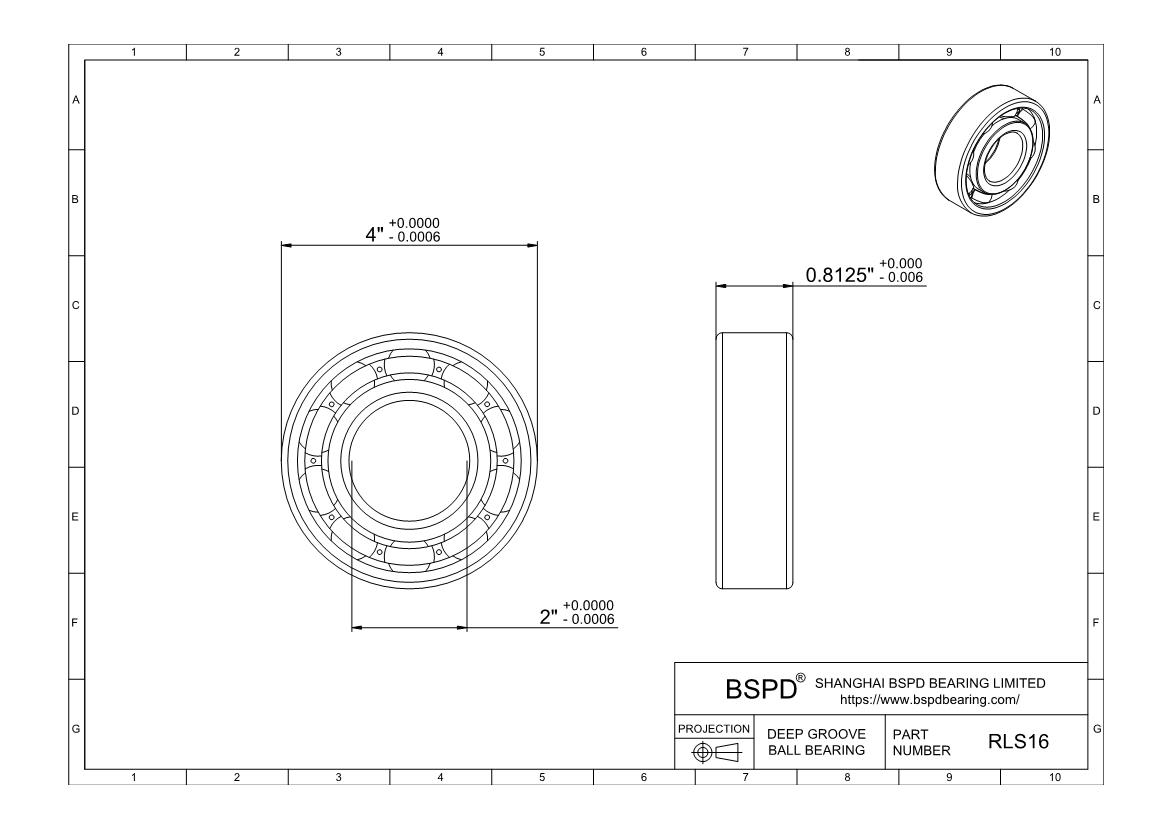

Dimensions: Bore (Inner) Diameter: 2"; Outer Diameter: 4"; Width (Thickness): 0.8125";

RLS16
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number RLS16
For Shaft Diameter 2"
Bore Dia (d) 2" | 50.8 mm
Bore Dia Tolerance -0.015mm to 0
For Housing ID 4"
Outer Dia (D) 4" | 101.6 mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 0.8125" | 20.638 mm
Width Tolerance -0.150mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 46200
Static Load Rating (Cor) (Newtons) 29000
Max Speed (Grease) (X1000 RPM) 9
Max Speed (Oil) (X1000 RPM)  11
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.008mm to 0.028mm
RoHS Compliant
Ball Qty
Ball Dia
Weight (grams) 700
RLS16
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of ball bearings RLS16 ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
