RLS28 Deep Groove Ball Bearings

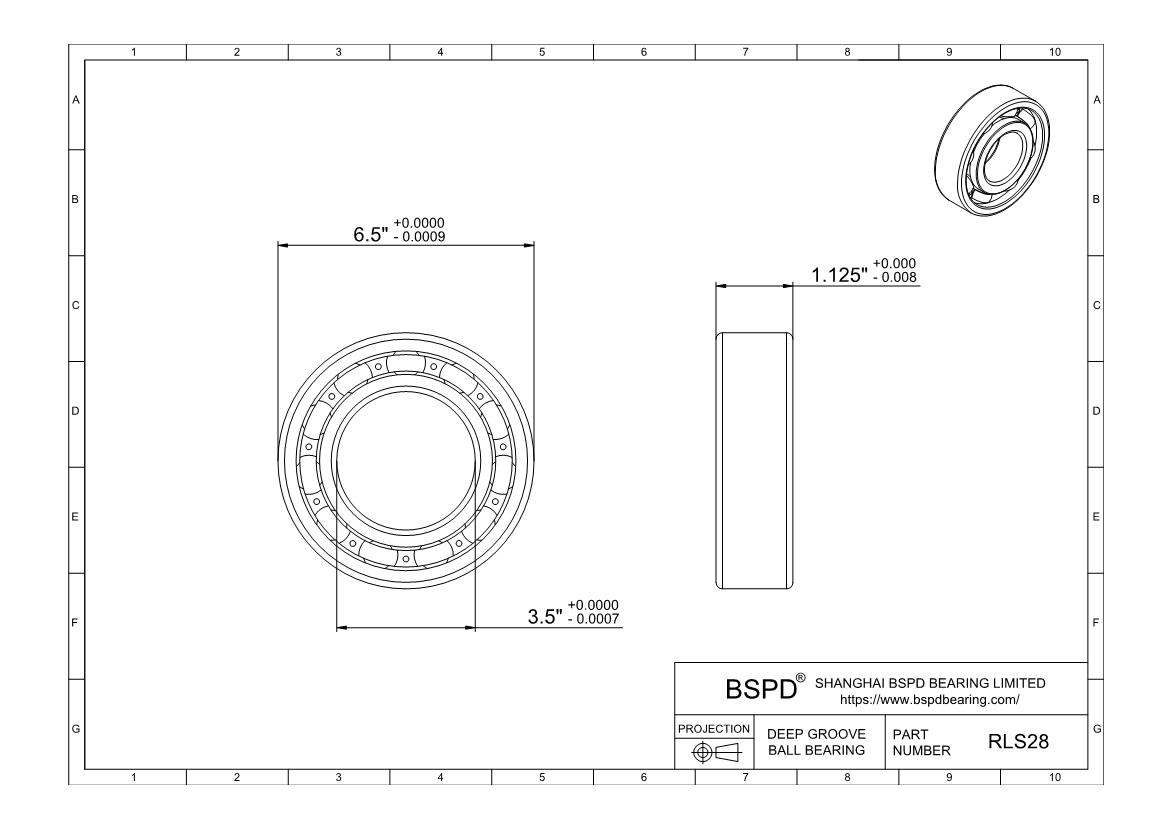

Dimensions: Bore (Inner) Diameter: 3.5"; Outer Diameter: 6.5"; Width (Thickness): 1.125";

RLS28
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number RLS28
For Shaft Diameter 3.5"
Bore Dia (d) 3.5" | 88.9 mm
Bore Dia Tolerance -0.02mm to 0
For Housing ID 6.5"
Outer Dia (D) 6.5" | 165.1 mm
Outer Dia Tolerance -0.025mm to 0
Width (B) 1.125" | 28.575 mm
Width Tolerance -0.200mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 95600
Static Load Rating (Cor) (Newtons) 73500
Max Speed (Grease) (X1000 RPM) 5.3
Max Speed (Oil) (X1000 RPM)  6
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.012mm to 0.036mm
RoHS Compliant
Ball Qty
Ball Dia
Weight (grams) 2460
RLS28
