RLS4 Deep Groove Ball Bearings

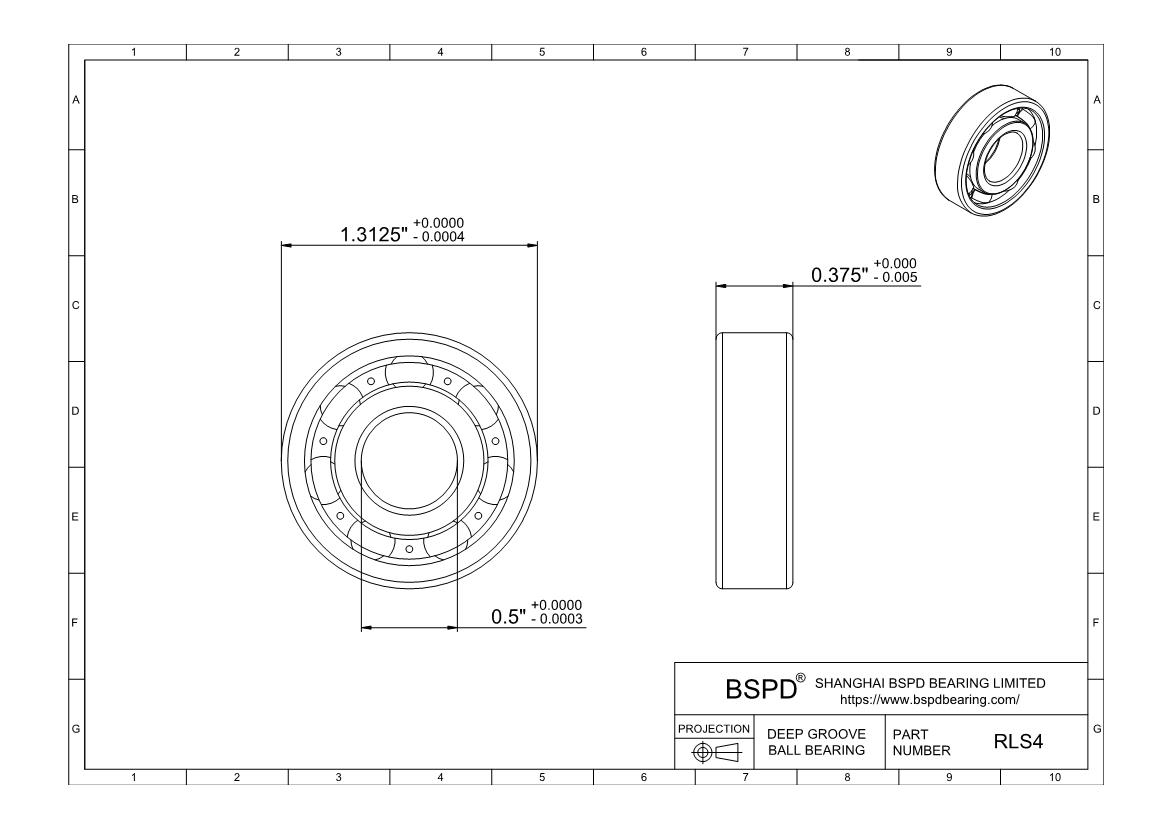

Dimensions: Bore (Inner) Diameter: 0.5"; Outer Diameter: 1.3125"; Width (Thickness): 0.375";

RLS4
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number RLS4
For Shaft Diameter 0.5"
Bore Dia (d) 0.5" | 12.7 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 1.3125"
Outer Dia (D) 1.3125" | 33.338 mm
Outer Dia Tolerance -0.011mm to 0
Width (B) 0.375" | 9.525 mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 7280
Static Load Rating (Cor) (Newtons) 3100
Max Speed (Grease) (X1000 RPM) 32
Max Speed (Oil) (X1000 RPM)  38
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.003mm to 0.018mm
RoHS Compliant
Ball Qty
Ball Dia
Weight (grams) 40
