RLS8-2RS
Deep Groove Ball Bearings
Dimensions: Bore (Inner) Diameter: 1"; Outer Diameter: 2.25"; Width (Thickness): 0.625";
![RLS8-2RS](https://www.bspdbearing.com/wp-content/uploads/2021/05/sealed.jpg)
REQUEST FOR QUOTE
Product Attributes
Bearing Type | Ball |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Sealed |
Part Number | RLS8 2RS |
For Shaft Diameter | 1" |
Bore Dia (d) | 1" | 25.4 mm |
Bore Dia Tolerance | -0.01mm to 0 |
For Housing ID | 2.25" |
Outer Dia (D) | 2.25" | 57.15 mm |
Outer Dia Tolerance | -0.013mm to 0 |
Width (B) | 0.625" | 15.875 mm |
Width Tolerance | -0.120mm to 0 |
Ring Material | 52100 Chrome steel |
Ball Material | 52100 Chrome steel |
Cage Material | 300 Series Stainless Steel |
Dynamic Load Rating (Cr) (Newtons) | 17800 |
Static Load Rating (Cor) (Newtons) | 9650 |
Max Speed (Grease) (X1000 RPM) | 8 |
Max Speed (Oil) (X1000 RPM) | 10 |
Lubrication | Required |
Shaft Mount Type | Press Fit |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance Trade No. | C0 |
Radial Clearance | 0.006mm to 0.020mm |
RoHS | Compliant |
Ball Qty | |
Ball Dia | |
Weight (grams) | 180 |

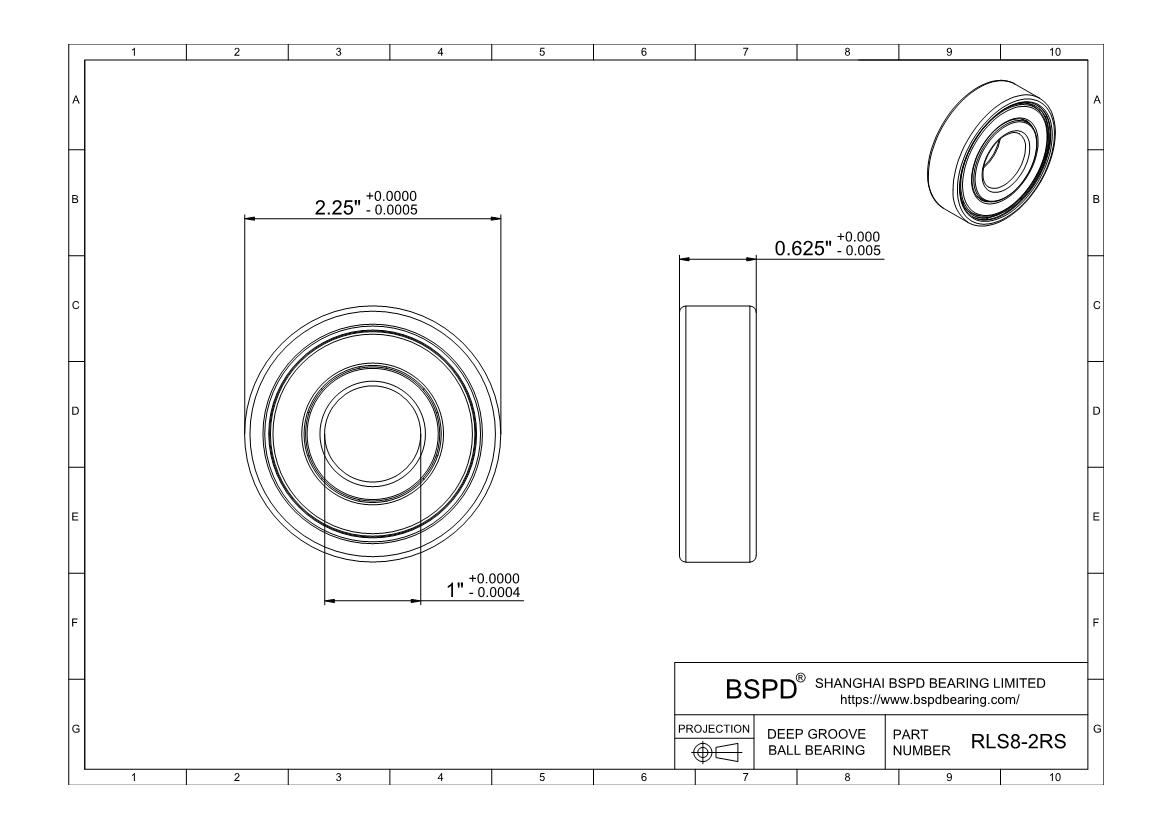

![RLS8-2RS](/wp-content/uploads/pdf/RLS8-2RS/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of ball bearings RLS8-2RS ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
