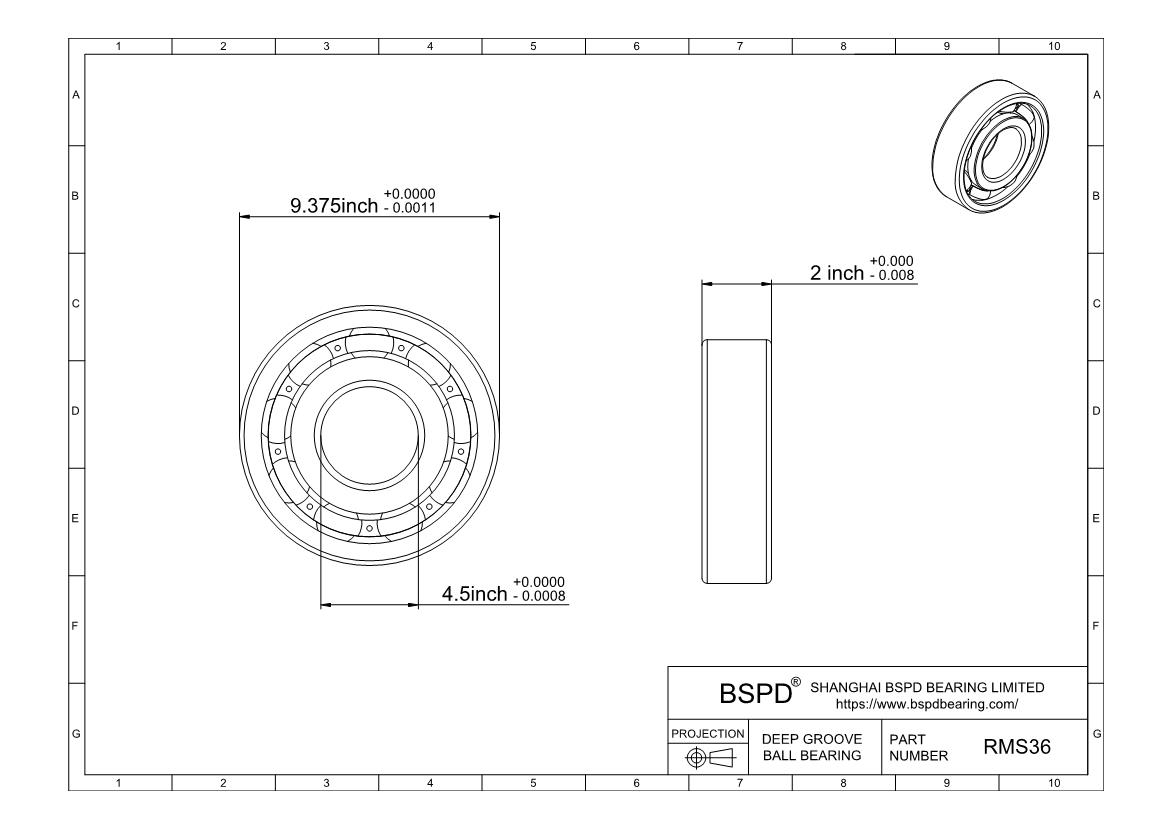

RMS36
Deep Groove Ball Bearings
Dimensions: Bore (Inner) Diameter: 4.5"； Outer Diameter: 9.375"； Width (Thickness): 2";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | RMS36 |
| For Shaft Diameter | 4.5" |
| Bore Dia (d) | 4.5" | 114.3 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| For Housing ID | 9.375" |
| Outer Dia (D) | 9.375" | 238.125 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Width (B) | 2" | 50.8 mm |
| Width Tolerance | -0.200mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 203000 |
| Static Load Rating (Cor) (Newtons) | 180000 |
| Max Speed (Grease) (X1000 RPM) | 5.3 |
| Max Speed (Oil) (X1000 RPM) | 6 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.015mm to 0.041mm |
| RoHS | Compliant |
| Ball Qty | |
| Ball Dia | |
| Weight (grams) | 9140 |
