RMS5 Deep Groove Ball Bearings

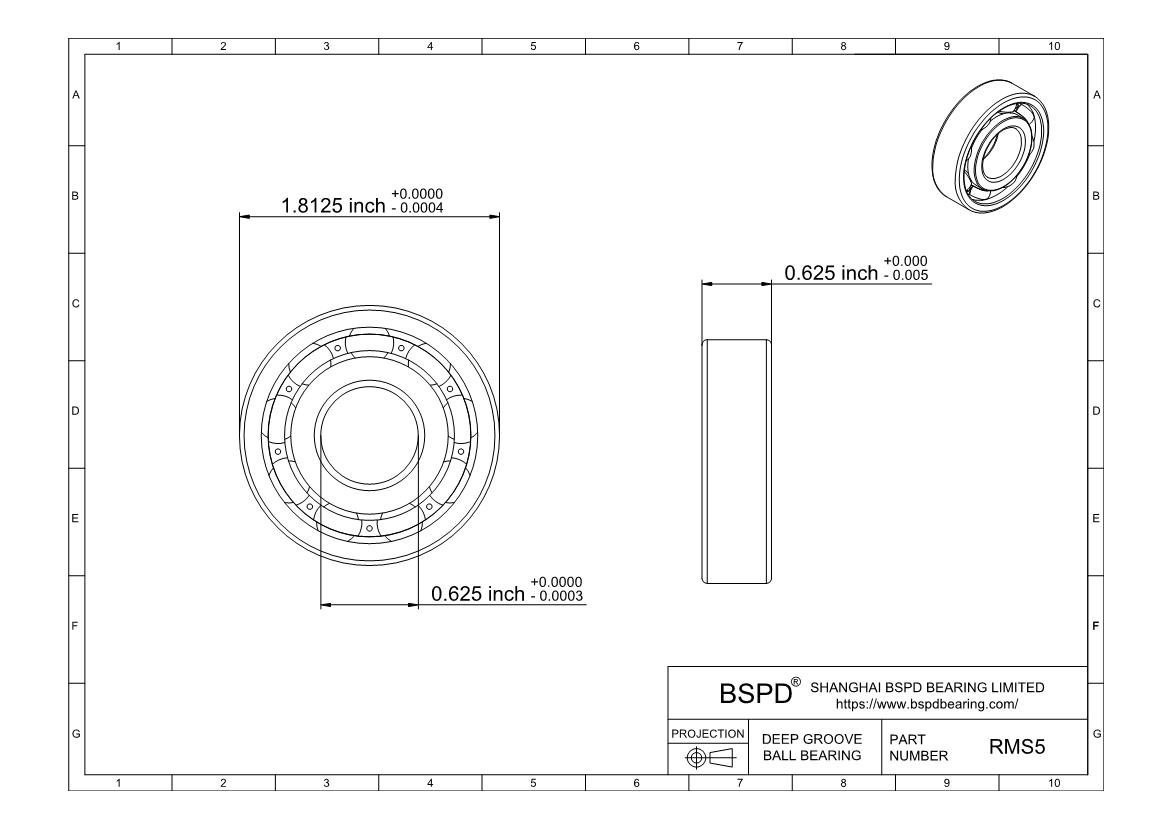

Dimensions: Bore (Inner) Diameter: 0.625"; Outer Diameter: 1.8125"; Width (Thickness): 0.625";

RMS5
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Part Number RMS5
For Shaft Diameter 0.625"
Bore Dia (d) 0.625" | 15.875 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 1.8125"
Outer Dia (D) 1.8125" | 46.038 mm
Outer Dia Tolerance -0.011mm to 0
Width (B) 0.625" | 15.875 mm
Width Tolerance -0.120mm to 0
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 13500
Static Load Rating (Cor) (Newtons) 6550
Max Speed (Grease) (X1000 RPM) 22
Max Speed (Oil) (X1000 RPM)  26
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.003mm to 0.018mm
RoHS Compliant
Ball Qty
Ball Dia
Weight (grams) 120
RMS5
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of ball bearings RMS5 ? Deep Groove Ball Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
