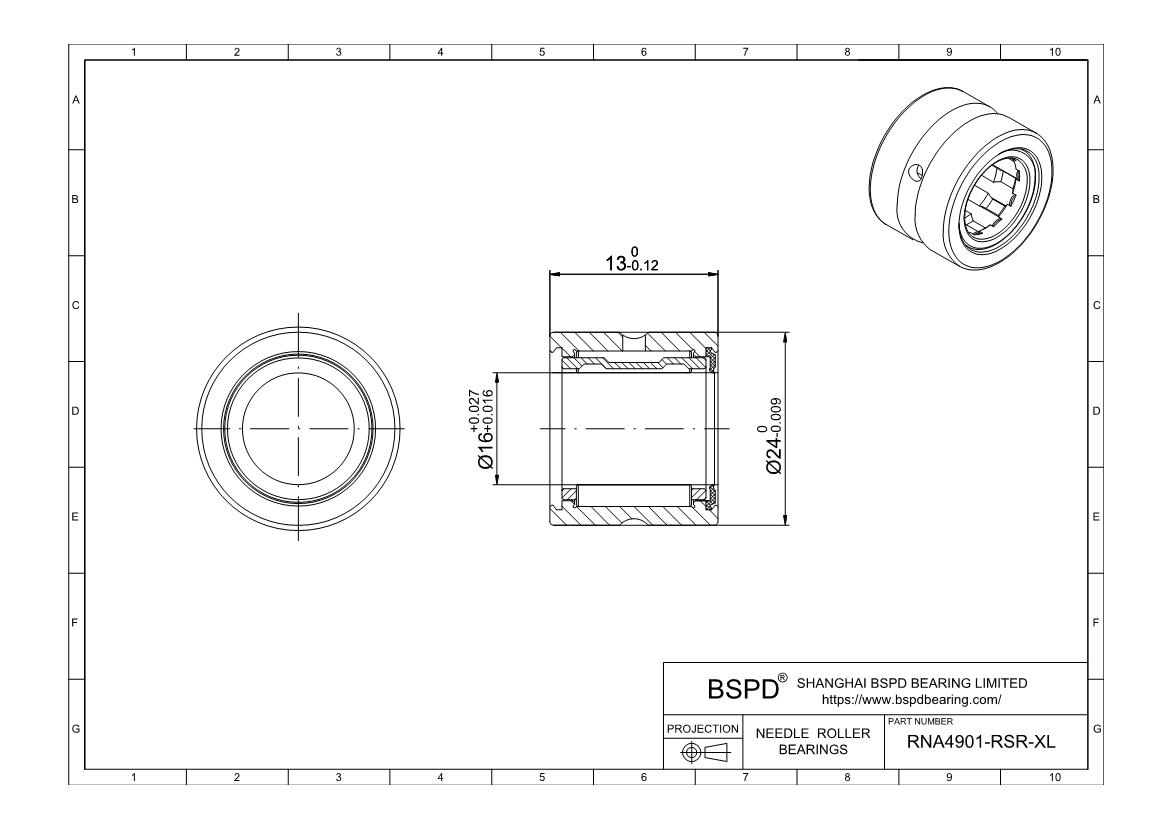

RNA4901-RSR-XL Heavy Duty Needle Roller Bearings (Machined)
Dimensions: Bore (Inner) Diameter: 16 mm; Outer Diameter: 24 mm; Width (Thickness): 13 mm;

RNA4901-RSR-XL
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
System of Measurement Metric
Seal Type Single Seal
Part Number RNA4901-RSR-XL
For Shaft Diameter 16mm
Bore Dia 16mm
Bore Dia Tolerance 0.016mm to 0.027mm
For Housing ID 24mm
Outer Dia 24mm
Outer Dia Tolerance -0.009mm to 0
Width 13mm
Width Tolerance -0.12mm to 0
Chamfer Dimension (r min) 0.3mm
Ring Material steel
Roller Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 8600
Static Load Rating (Cor) (Newtons) 8300
Fatigue limit load(Cur) (Newtons) 1660
Max Speed (Grease) (RPM) 13900
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 18
RNA4901-RSR-XL
