RNA4908-RSR-XL Heavy Duty Needle Roller Bearings (Machined)

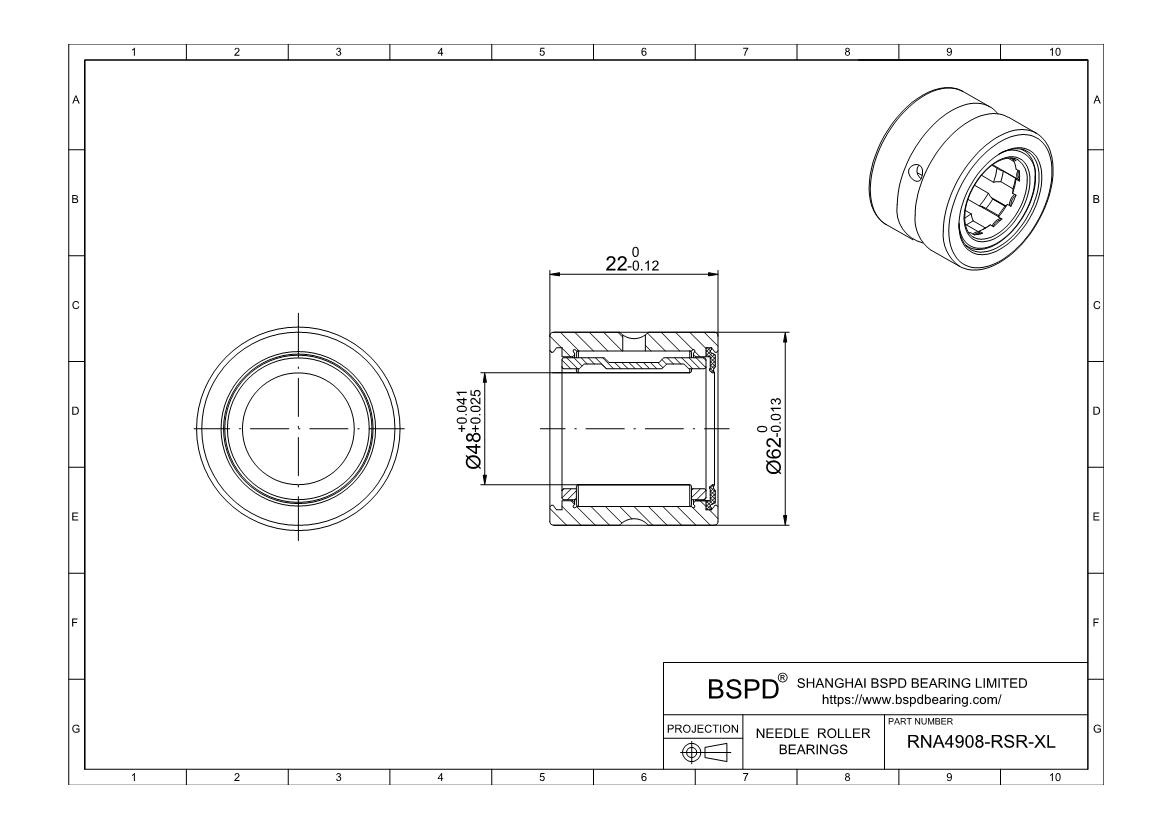

Dimensions: Bore (Inner) Diameter: 48 mm; Outer Diameter: 62 mm; Width (Thickness): 22 mm;

RNA4908-RSR-XL
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
System of Measurement Metric
Seal Type Single Seal
Part Number RNA4908-RSR-XL
For Shaft Diameter 48mm
Bore Dia 48mm
Bore Dia Tolerance 0.025mm to 0.041mm
For Housing ID 62mm
Outer Dia 62mm
Outer Dia Tolerance -0.013mm to 0
Width 22mm
Width Tolerance -0.12mm to 0
Chamfer Dimension (r min) 0.6mm
Ring Material steel
Roller Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 41000
Static Load Rating (Cor) (Newtons) 53000
Fatigue limit load(Cur) (Newtons) 9000
Max Speed (Grease) (RPM) 5500
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 154
RNA4908-RSR-XL
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings RNA4908-RSR-XL ? Heavy Duty Needle Roller Bearings (Machined) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
