RNA69/22-XL Heavy Duty Needle Roller Bearings (Machined)

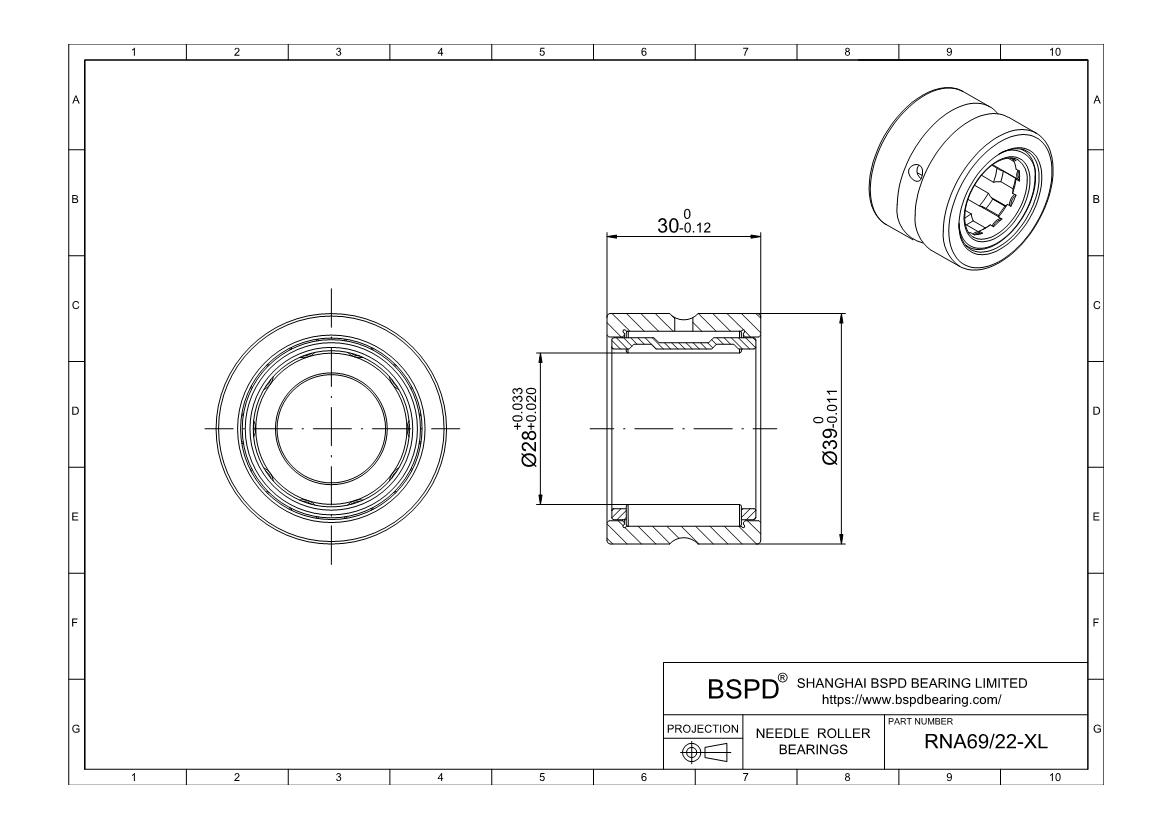

Dimensions: Bore (Inner) Diameter: 28 mm; Outer Diameter: 39 mm; Width (Thickness): 30 mm;

RNA69/22-XL
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
System of Measurement Metric
Seal Type Open
Part Number RNA69/22-XL
For Shaft Diameter 28mm
Bore Dia 28mm
Bore Dia Tolerance 0.02mm to 0.033mm
For Housing ID 39mm
Outer Dia 39mm
Outer Dia Tolerance -0.011mm to 0
Width 30mm
Width Tolerance -0.12mm to 0
Chamfer Dimension (r min) 0.3mm
Ring Material steel
Roller Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 42000
Static Load Rating (Cor) (Newtons) 55000
Fatigue limit load(Cur) (Newtons) 10000
Max Speed (Grease) (RPM) 15300
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 98
RNA69/22-XL
