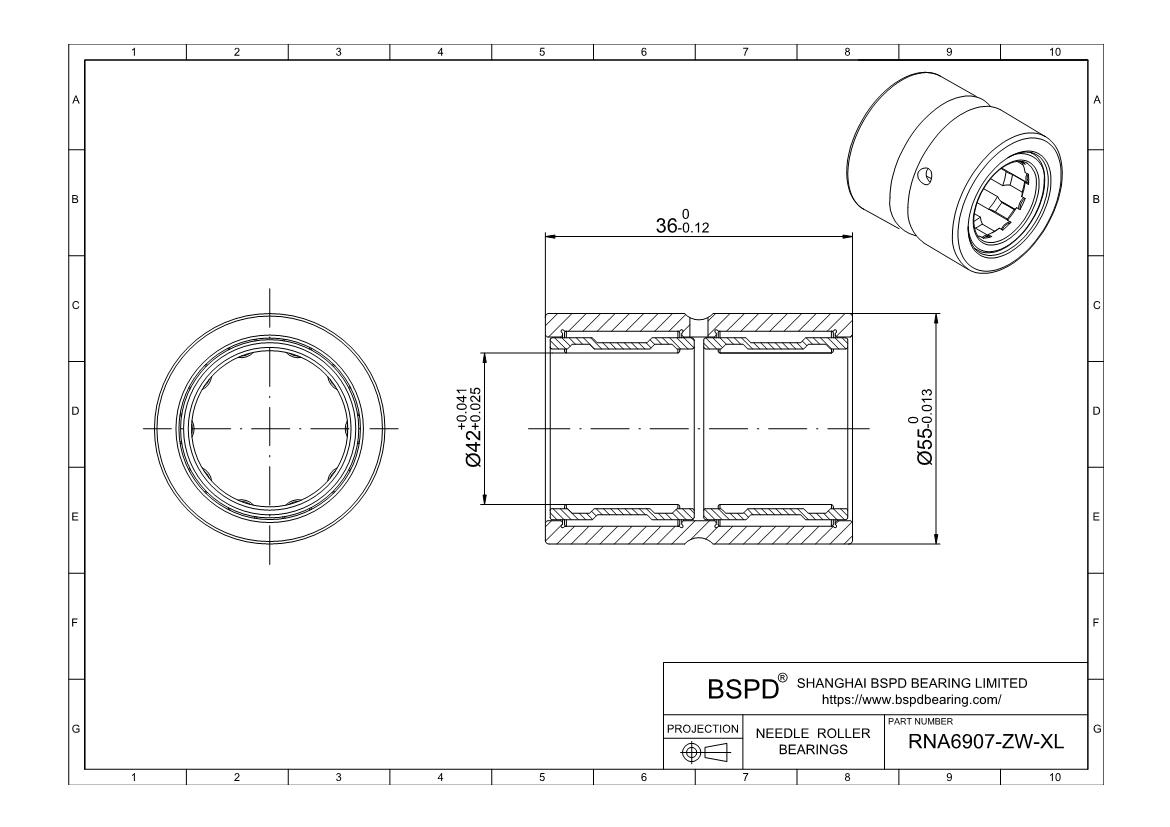

RNA6907-ZW-XL Heavy Duty Needle Roller Bearings (Machined)
Dimensions: Bore (Inner) Diameter: 42 mm; Outer Diameter: 55 mm; Width (Thickness): 36 mm;

RNA6907-ZW-XL
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Double Row
System of Measurement Metric
Seal Type Open
Part Number RNA6907-ZW-XL
For Shaft Diameter 42mm
Bore Dia 42mm
Bore Dia Tolerance 0.025mm to 0.041mm
For Housing ID 55mm
Outer Dia 55mm
Outer Dia Tolerance -0.013mm to 0
Width 36mm
Width Tolerance -0.12mm to 0
Chamfer Dimension (r min) 0.6mm
Ring Material steel
Roller Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 54000
Static Load Rating (Cor) (Newtons) 86000
Fatigue limit load(Cur) (Newtons) 16200
Max Speed (Grease) (RPM) 10700
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 193
RNA6907-ZW-XL
