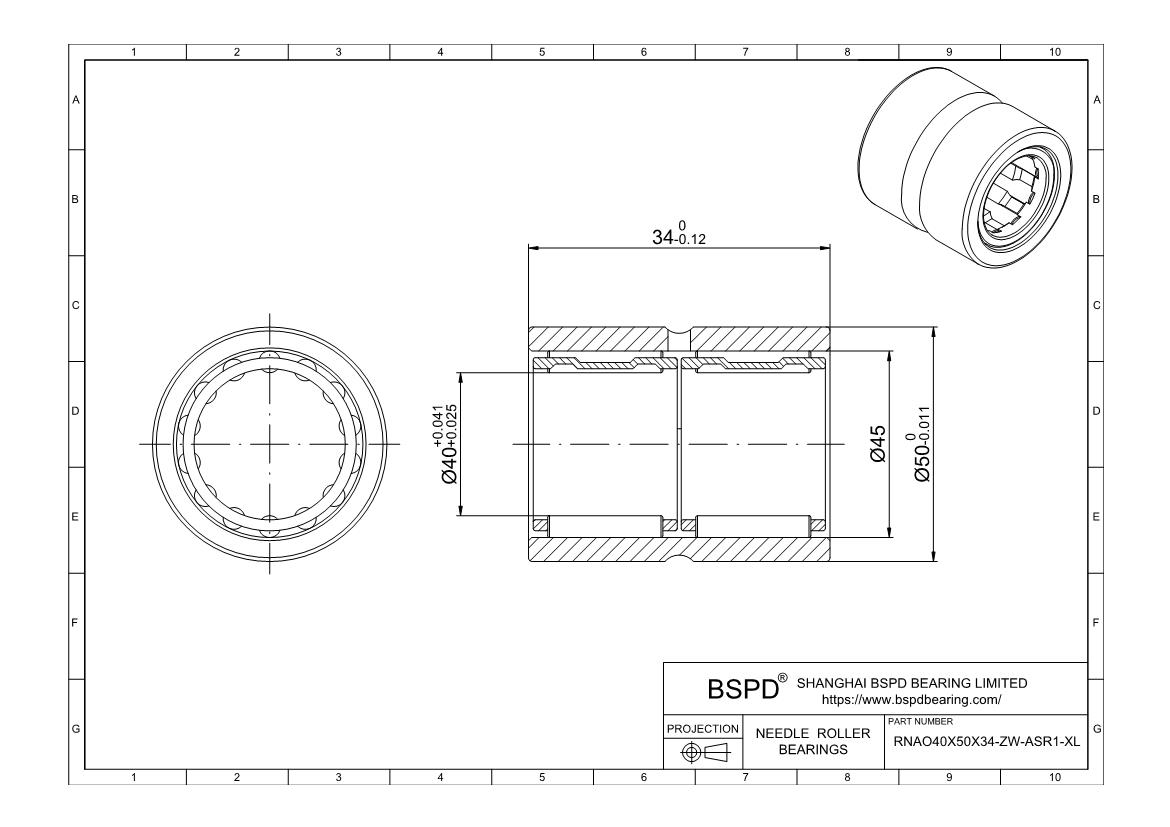

RNAO40X50X34-ZW-ASR1-XL
Heavy Duty Needle Roller Bearings (Machined)
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 50 mm； Width (Thickness): 34 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Double Row |
| System of Measurement | Metric |
| Seal Type | Open |
| Part Number | RNAO40X50X34-ZW-ASR1-XL |
| For Shaft Diameter | 40 mm |
| Bore Dia | 40 mm |
| Bore Dia Tolerance | 0.025mm to 0.041mm |
| For Housing ID | 50 mm |
| Outer Dia | 50 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width | 34 mm |
| Width Tolerance | -0.12mm to 0 |
| E | 45 mm |
| Chamfer Dimension (r min) | 0,3 mm |
| Ring Material | steel |
| Roller Material | steel |
| Cage Material | Steel |
| Dynamic Load Rating (Cr) (Newtons) | 41500 |
| Static Load Rating (Cor) (Newtons) | 83000 |
| Fatigue limit load(Cur) (Newtons) | 13100 |
| Max Speed (Grease) (RPM) | 11500 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 152 |
Print PDF
Request a 3D CAD Model
