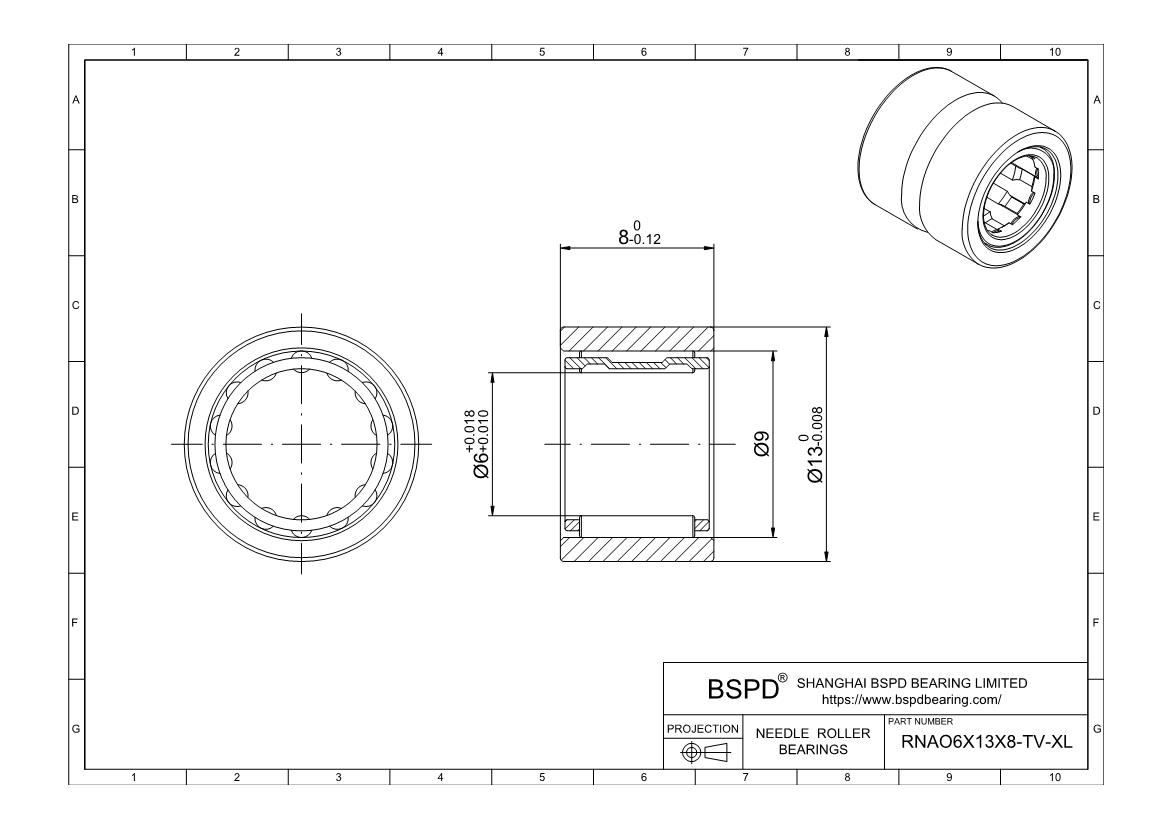

RNAO6X13X8-TV-XL Heavy Duty Needle Roller Bearings (Machined)
Dimensions: Bore (Inner) Diameter: 6 mm; Outer Diameter: 13 mm; Width (Thickness): 8 mm;

RNAO6X13X8-TV-XL
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
System of Measurement Metric
Seal Type Open
Part Number RNAO6X13X8-TV-XL
For Shaft Diameter 6 mm
Bore Dia 6 mm
Bore Dia Tolerance 0.01mm to 0.018mm
For Housing ID 13 mm
Outer Dia 13 mm
Outer Dia Tolerance -0.008mm to 0
Width 8 mm
Width Tolerance -0.12mm to 0
E 9 mm
Chamfer Dimension (r min) 0,3 mm
Ring Material steel
Roller Material steel
Cage Material PA66
Dynamic Load Rating (Cr) (Newtons) 2950
Static Load Rating (Cor) (Newtons) 2280
Fatigue limit load(Cur) (Newtons) 360
Max Speed (Grease) (RPM) 36500
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 6
RNAO6X13X8-TV-XL
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings RNAO6X13X8-TV-XL ? Heavy Duty Needle Roller Bearings (Machined) Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
