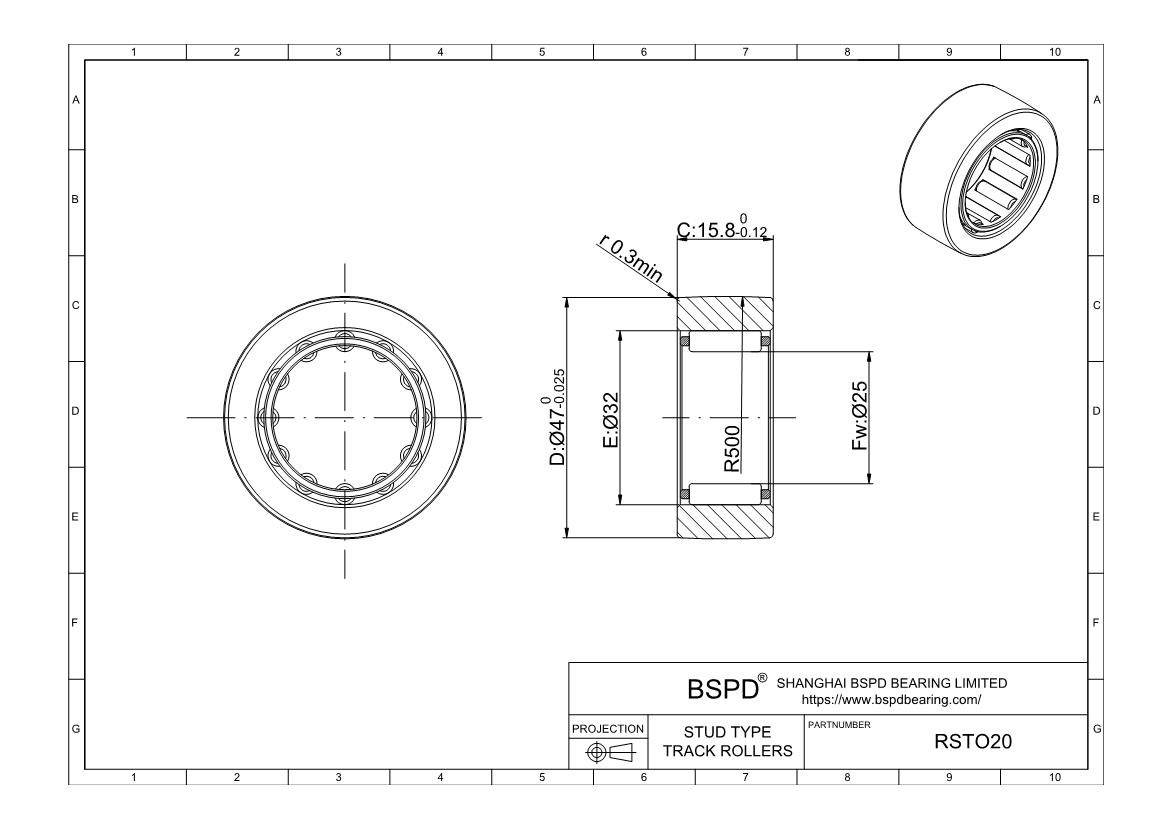

RSTO20 Cam Followers, Yoke Type & Stud Type Track Rollers
Dimensions: Roller Dia: 47 mm; Roller Width: 15.8 mm; Stud Dia: ; Stud Length: ;

RSTO20
REQUEST FOR QUOTE
* *
Send
Product Attributes
Guide Roller Type Track
Track Roller Type Round
For Load Direction Radial
Roller Profile Flat
Roller Style Yoke
Roller Material Steel
Fw 25 mm
D 47 mm
C 15.8 mm
E 32 mm
R 500 mm
rmin 0.3 mm
Cr w 16100 N
Cur w 3050 N
Maximum Speed 2400 1/min
Temperature Range -20 to 110 °C
Shaft Mount Type Press Fit
Bearing Type Needle Roller
With Seal No
Lubrication Required
RoHS Compliant
Weight (g) 130
RSTO20
