S316-1628
AISI316L Stainless Steel Ball Bearings

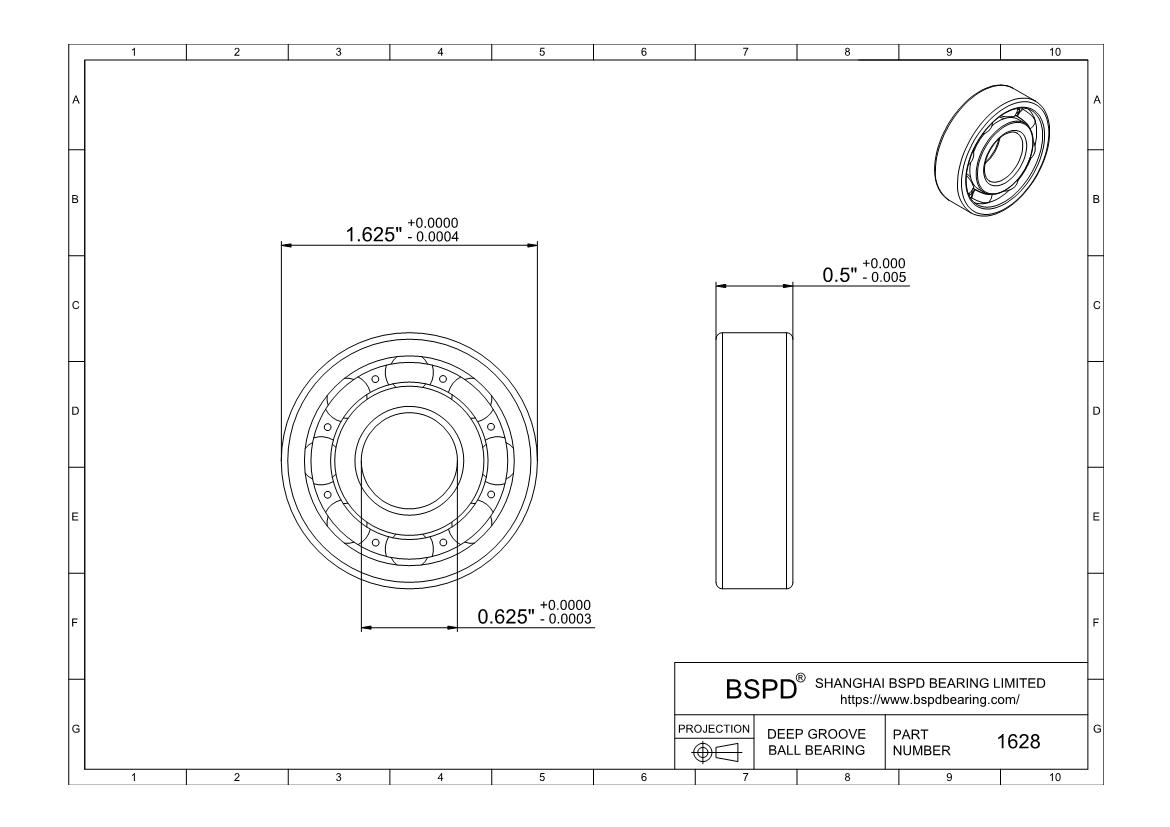

Dimensions: Bore (Inner) Diameter: 0.625"； Outer Diameter: 1.625"； Width (Thickness): 0.5";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Part Number | S316-1628 |
| For Shaft Diameter | 0.625" |
| Bore Dia (d) | 0.625" | 15.875 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 1.6250" |
| Outer Dia (D) | 1.6250" | 41.275 mm |
| Outer Dia Tolerance | -0.011mm to 0 |
| Width (B) | 0.5000" | 12.7 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 316 Stainless Steel |
| Ball Material | 316 Stainless Steel |
| Cage Material | 316 Stainless Steel |
| Seals Material | / |
| Dynamic radial (Newtons) | 840 |
| Static radial (Newtons) | 438 |
| Max Speed (X1000 RPM) | 3 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Weight (g) | 36 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
