S7022 ACD/HCP4A High Speed Angular Contact Sealed Ball Bearings

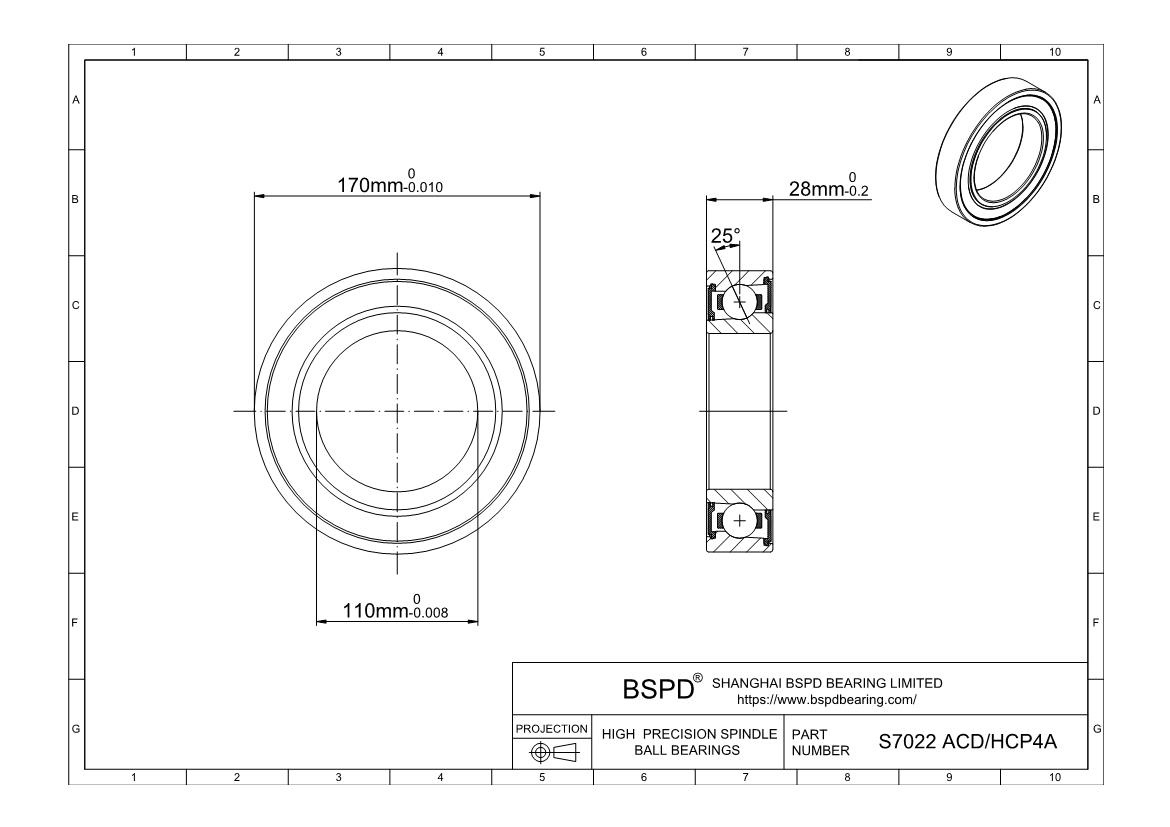

Dimensions: Bore (Inner) Diameter: 110 mm; Outer Diameter: 170 mm; Width (Thickness): 28 mm;

S7022 ACD/HCP4A
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Combined Radial and Thrust
Single Row/Double Row Single
Seal Type Sealed
Precision Rating P4 (ABEC-7)
Contact Angle 25
Part Number S7022 ACD/HCP4A
NSK Code S7022A5SN24TRV1VP4
Arrangement DB Set of two bearings arranged back-to-back
DF Set of two bearings arranged face-to-face >
DT Set of two bearings arranged in tandem
DG Set of two bearings for universal matching
Bore Dia (d) 110 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia (D) 170 mm
Outer Dia Tolerance -0.01mm to 0
Width (B) 28 mm
Width Tolerance -0.2mm to 0
Ring Material 52100 Chrome steel
Ball Material Ceramic Ball Si3N4
Cage Material Polyamide
Dynamic Load Rating (Cr) (KN) 104
Static Load Rating (Cor) (KN) 104
Max Speed (Grease) (RPM) 8500
Max Speed (Oil) (RPM)
Preload Extra Light Preload
Light Preload
Medium Preload
Heavy Preload
Special Preload
Special Axial Clearance
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Weight (grams) 1660
RoHS Compliant
S7022 ACD/HCP4A
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
