SCE2416-P Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.5"; Outer Diameter: 1.875"; Width (Thickness): 1";

SCE2416-P
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
End Open
System of Measurement Inch
Seal Type Single seal
Part Number SCE2416-P
For Shaft Diameter 1.5"
Bore Dia (d) 1.5" | 38.1 mm

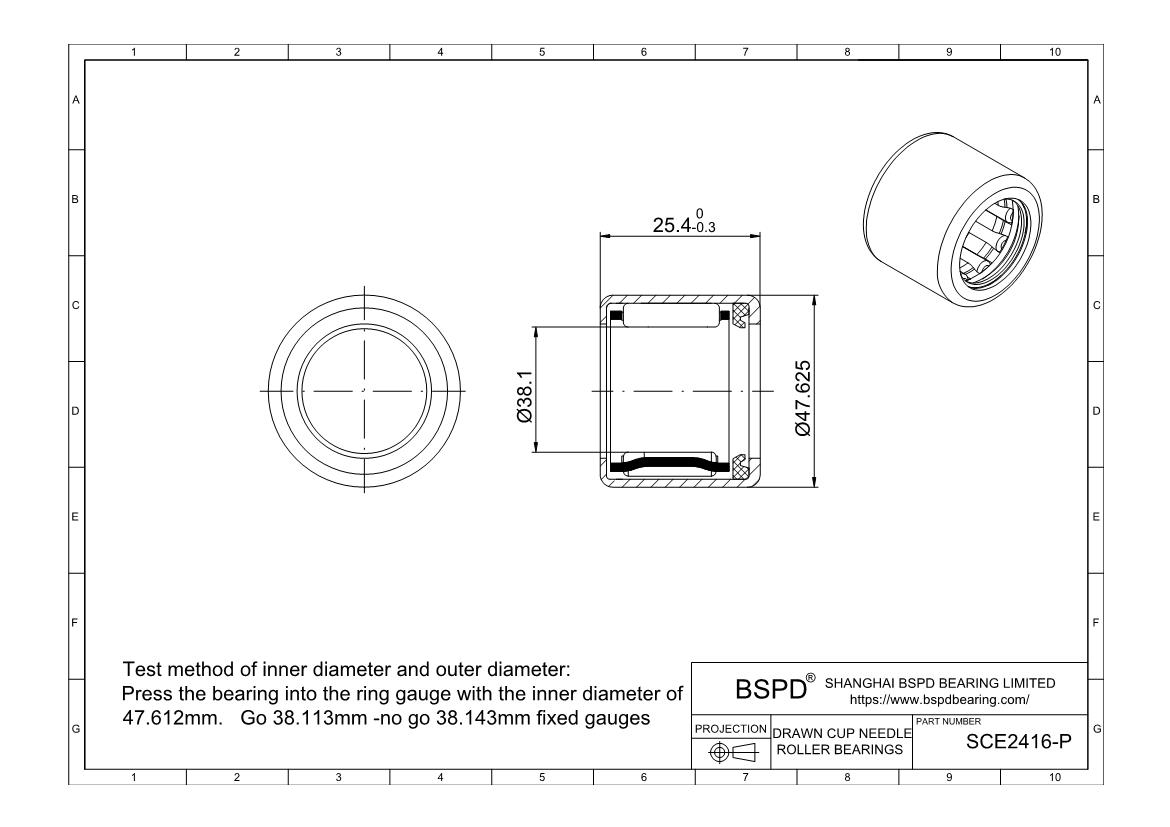

Bore Dia Tolerance Refer to note on the right drawing
For Housing ID 47.625mm
Outer Dia (D) 1.875" | 47.625mm
Outer Dia Tolerance Not Rated
Width (B) 1" | 25.4mm
Width Tolerance -0.01" to 0"
Ring Material steel
Ball Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 36000 N
Static Load Rating (Cor) (Newtons) 60000 N
Max Speed (Grease) (RPM) 6700
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 83
SCE2416-P
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings SCE2416-P ? Drawn Cup Needle Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
