SCE2424-PP
Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.5"； Outer Diameter: 1.875"； Width (Thickness): 1.5";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| System of Measurement | Inch |
| Seal Type | Double seals |
| Part Number | SCE2424-PP |
| For Shaft Diameter | 1.5" |
| Bore Dia (d) | 1.5" | 38.1 mm |

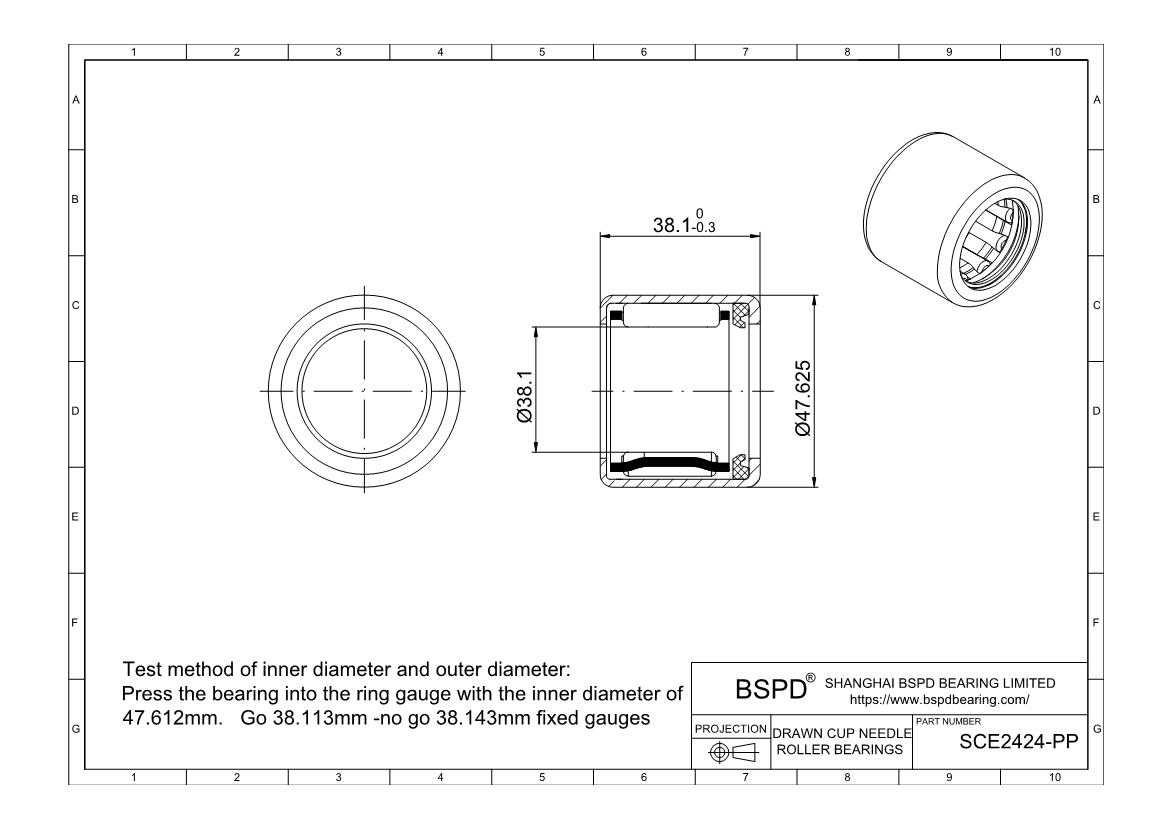

| Bore Dia Tolerance | Refer to note on the right drawing |
| For Housing ID | 47.625mm |
| Outer Dia (D) | 1.875" | 47.625mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 1.5" | 38.1mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 47500 N |
| Static Load Rating (Cor) (Newtons) | 86000 N |
| Max Speed (Grease) (RPM) | 5500 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 117 |
Print PDF
Request a 3D CAD Model
