SCE69-P Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 0.375"; Outer Diameter: 0.5625"; Width (Thickness): 0.5625";

SCE69-P
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
End Open
System of Measurement Inch
Seal Type Single seal
Part Number SCE69-P
For Shaft Diameter 3/8 "
Bore Dia (d) 3/8 " | 9.525 mm

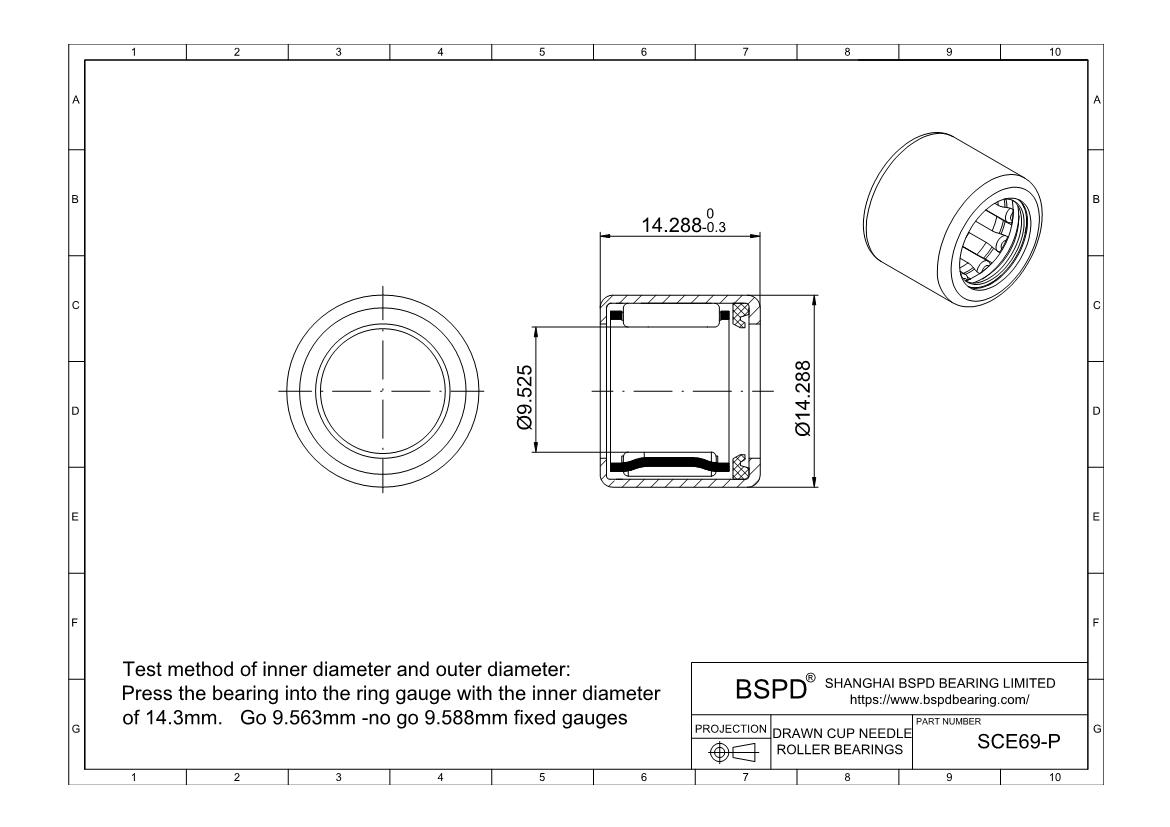

Bore Dia Tolerance Refer to note on the right drawing
For Housing ID 14.288mm
Outer Dia (D) 0.5625" | 14.288mm
Outer Dia Tolerance Not Rated
Width (B) 0.5625" | 14.288mm
Width Tolerance -0.01" to 0"
Ring Material steel
Ball Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 5800 N
Static Load Rating (Cor) (Newtons) 6600 N
Max Speed (Grease) (RPM) 25000
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 7
SCE69-P
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings SCE69-P ? Drawn Cup Needle Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
