SCH913-P Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 0.5625"; Outer Diameter: 0.8125"; Width (Thickness): 0.8125";

SCH913-P
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
End Open
System of Measurement Inch
Seal Type Single seal
Part Number SCH913-P
For Shaft Diameter 9/16 "
Bore Dia (d) 9/16 " | 14.2875 mm

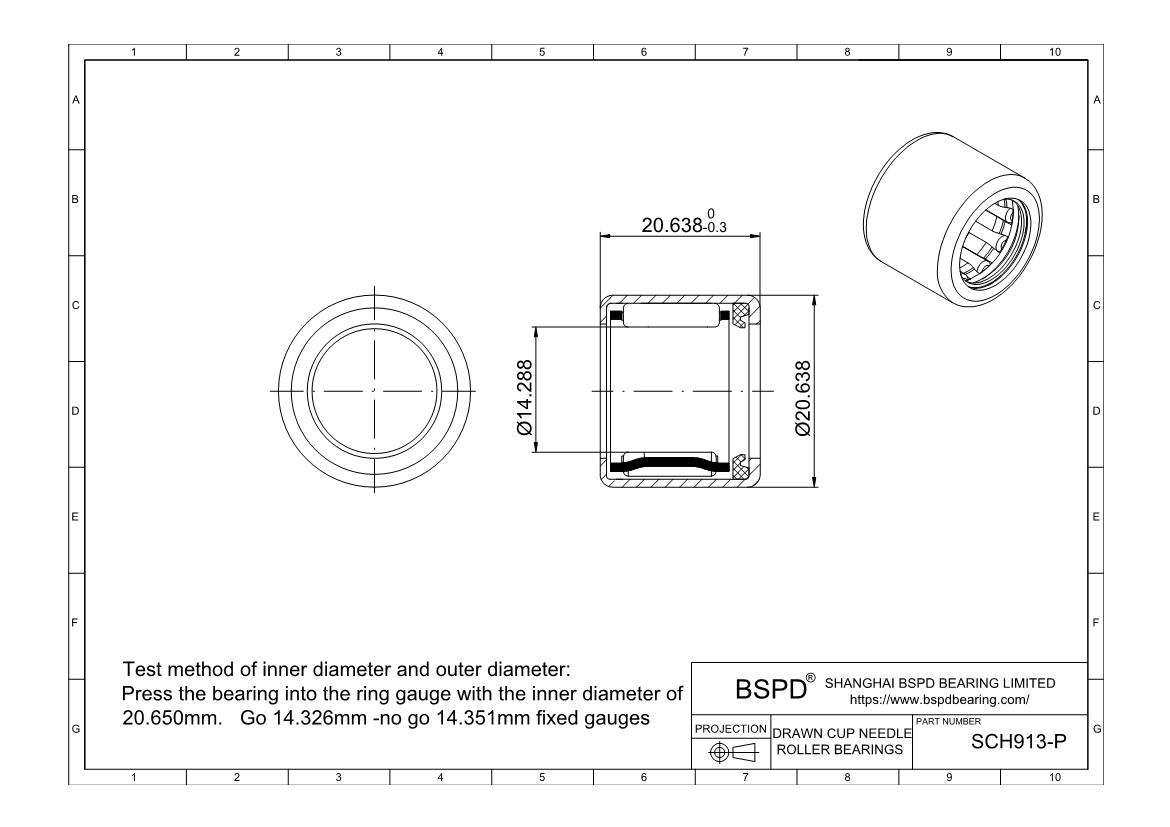

Bore Dia Tolerance Refer to note on the right drawing
For Housing ID 20.638mm
Outer Dia (D) 0.8125" | 20.638mm
Outer Dia Tolerance Not Rated
Width (B) 0.8125" | 20.638mm
Width Tolerance -0.01" to 0"
Ring Material steel
Ball Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 14400 N
Static Load Rating (Cor) (Newtons) 19000 N
Max Speed (Grease) (RPM) 16800
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 19
SCH913-P
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings SCH913-P ? Drawn Cup Needle Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
