SFFR144K1TLGZWN Dental Bearings

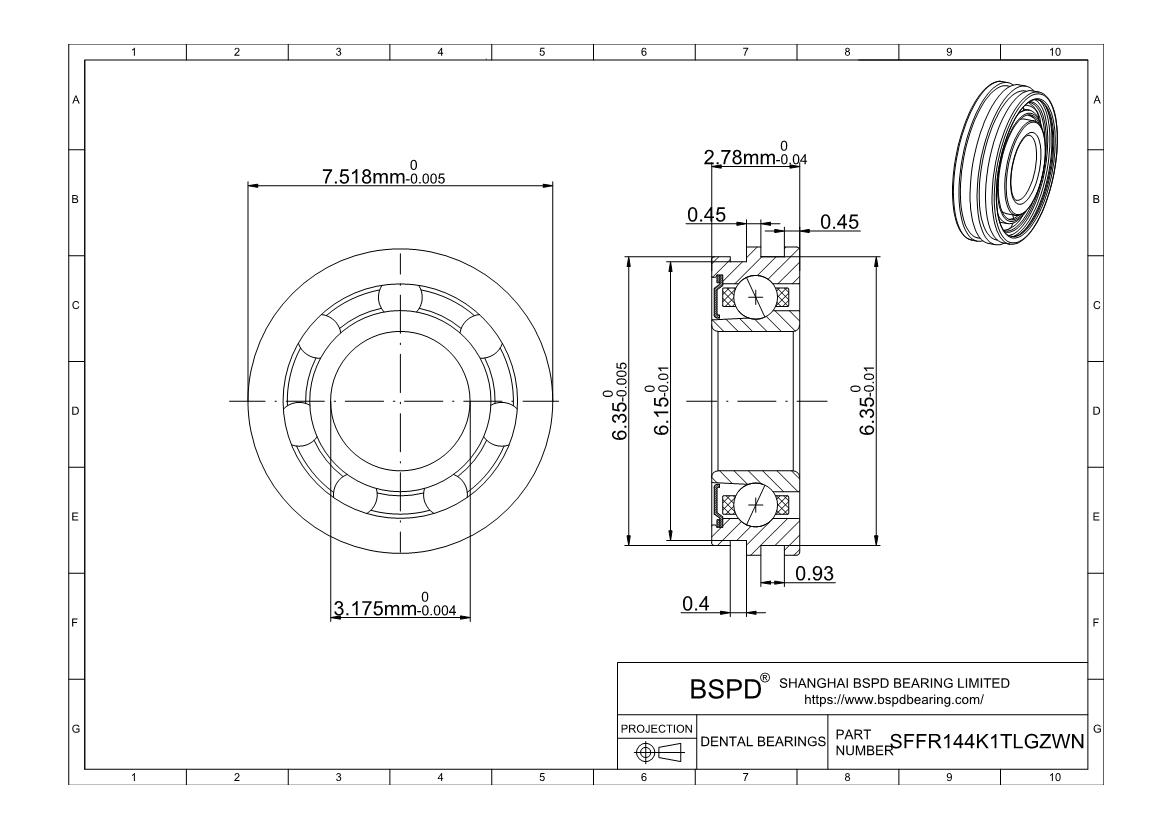

Dimensions: Bore (Inner) Diameter: 3.175 mm; Outer Diameter: 6.35 mm; Width (Thickness): 2.78 mm;

SFFR144K1TLGZWN
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
Seal Type Single shield
Precision Rating P4 (ABEC-7)
Structure Unique
Ball Bearing Type Angular contact
Contact Angle 18 º
Part Number SFFR144K1TLGZWN
Other MFG Code
Bore Dia (d) 3.175mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia (D) 6.35mm
Outer Dia Tolerance -0.004mm to 0
Width (B) 2.78mm
Width Tolerance -0.04mm to 0
Ring Material AISI440C Stainless Steel
Ball Material Si3N4 balls
Cage Material Torlon
Dynamic Load Rating (Cr) (Newtons) 240.26
Static Load Rating (Cor) (Newtons) 75.64
Max Speed (RPM) 500,000
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -40 to 120 ºC
Mass (grams) 0.4
RoHS Compliant
SFFR144K1TLGZWN
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
